Hotplates and Stirrers

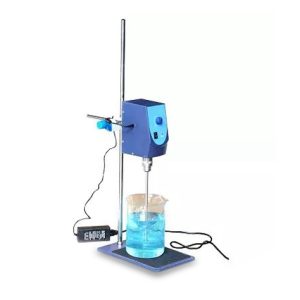

Model: PH-II-6 PH-II-6C PH-II-7C

Speed range ( r/min ): 100-2500

Max. Volume( L ): 20, 40

Data interface: No

Introduction:

Overhead Stirrer is designed for high volume and high viscosity sample stirring applications. It is used in polymer processing, organic and inorganic solvent mixing, chemical synthesis and many more pharmaceutical applications.

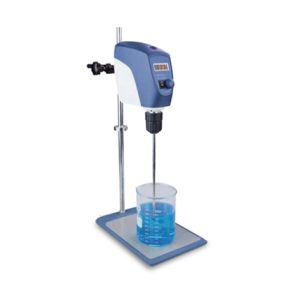

Model:PS20-S, PS40-S

Max. stirring volume [H₂O]:20L, 40L

Speed range ( r/min ):50-2200

Display:LED

Max. torque ( N-cm ): 40, 60

Max. viscosity ( mPa·s ):10000, 50000

Data interface:No

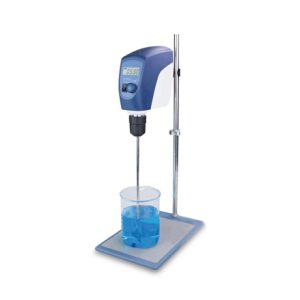

Model:PS20-Pro, PS40-Pro

Max. stirring volume [H₂O]:20L, 40L

Speed range ( r/min ):50-2200

Display:LCD

Max. torque ( N-cm ): 40, 60

Max. viscosity ( mPa·s ):10000, 50000

Data interface:RS232

Hot Plate can be used for sample heating, drying, digestion, acid removal, etc. It is widely used in experiments and laboratories such as food, agriculture, soil, environmental protection, food, scientific research institutes, universities and colleges.

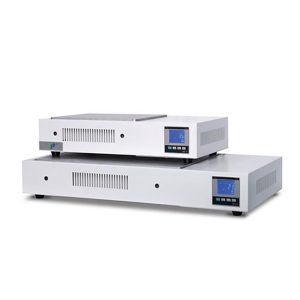

Model:PRB-400B/PRB-600B

Work plate size:380*290、600*400

Work plate material:Aluminum alloy

Heating temperature range:RT-350℃

Temperature control accuracy:±1℃

Display:LCD

Hot Plate are widely used in experiments and laboratories such as food, agriculture, soil, environmental protection, food, scientific research institutes, universities and colleges. Can be used for sample heating, drying, digestion, acid removal, etc.

Model: PRB-400L/PRB-600L

Work plate size:380*290, 600*400

Work plate material:Aluminum alloy coating

Max. temperature range:350℃

Temperature control accuracy:±1℃

Display:5.5-inch color touch screen

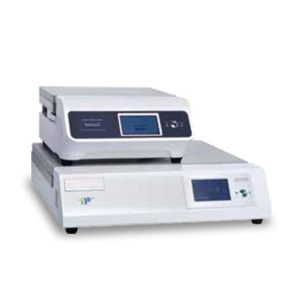

Model: PRB-400S

Work plate size:380*290

Work plate material:high density graphite

Max. temperature range:450℃

Temperature control accuracy:±1℃

Display:5.5-inch color touch screen

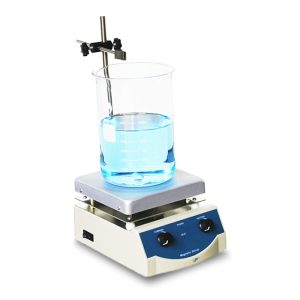

Model:TH Series

Work plate size:120*120, 170*170mm

Work plate material:Cast aluminium, Surface spraying

Max. stirring volume:2000, 5000ml

Speed range:100~2000rpm

Max temperature:380℃

Temperature control accuracy:–

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

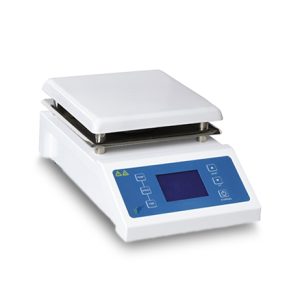

Model:TH Series

Work plate size:190*190mm

Work plate material:Aluminum tensile

Max. stirring volume:5000ml

Speed range:200～2000rpm

Max. temp:380℃, 350℃

Temperature control accuracy:1℃

Display:LCD

Data interface:No

Support clamp & temperature sensor:Optional

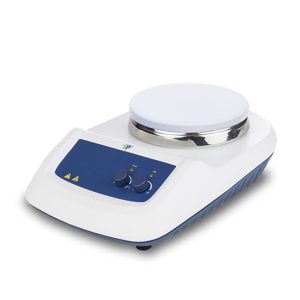

Model:P-H-S

Work plate size:φ135mm (5 inch)

Work plate material: Stainless steel cover with ceramic

Max. stirring volume: 20L

Speed range:100-1500rpm

Heating temperature range:Room Temp.-340°C

Temperature control accuracy:–

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

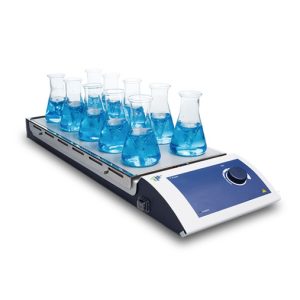

Model:P-H-S10

Work plate size:180*450mm

Work plate material:Stainless steel with silicone

Max. stirring volume:0.4L*10

Speed range:10-1100rpm

Heating temperature range:Room temp.-120°C

Temperature control accuracy:–

Display:No

Data interface:No

Support clamp & temperature sensor: Optional

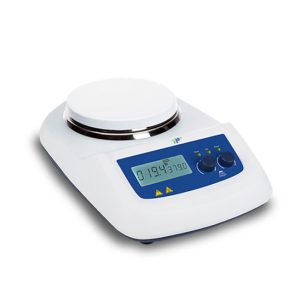

Model:P-H-ProT

Work plate size: φ135mm (5 inch)

Work plate material:Stainless steel cover with ceramic

Max. stirring volume:20L

Speed range:100-1500rpm

Heating temperature range:Room Temp.-340°C

Temperature control accuracy:±1°C

Display:LCD

Data interface:RS232

Support clamp & temperature sensor: Optional

It has an adjustable heating power and a magnetic stirrer that can be controlled separately. The device features an LCD screen that displays real-time temperature and stirring speed. It is commonly used in scientific research, medical, and industrial laboratories for various applications such as chemical synthesis, sample preparation, and quality control.

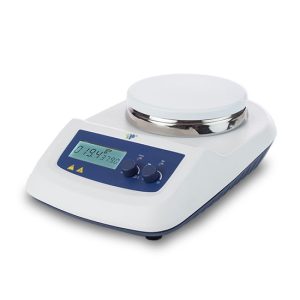

Model:P-H-PRO+

Work plate size:φ135mm (5 inch)

Work plate material:Stainless steel cover with ceramic

Max. stirring volume:20L

Speed range:100-1500rpm

Heating temperature range: Room temp.-340°C

Temperature control accuracy:±1°C

Display:LCD

Data interface:RS232

Support clamp & temperature sensor: Optional
