Lab Ventilation Products

Model:T-12, T-15, T-18

Exhaust speed：within 0.3m-0.6m/s adjustable

Material (Economy type)：Steel and wood structure

Standard with one socket, optional workspace sink, faucet.

Model: TS-12, TS-15, TS-18

Exhaust speed：0.5m/sec

Shell material：1.0mm thick cold-rolled steel plate

Inner shell material：5mm anti folding special plate

Standard with one socket, optional workspace sink, faucet.

All water, electricity, and gas pipelines are installed in a concealed manner. The back panel of the cabinet is equipped with maintenance holes.

Model:TS-FH1200, TS-FH1500, TS-FH1200

Exhaust speed：0.25-0.45 m/s, adjustable

Shell material：All steel structure

Standard with one socket, optional workspace sink, faucet.

① Well-suited for laboratories or medical settings where controlled containment of airborne particles and fumes is essential, and where space constraints necessitate a desktop configuration.

② Designed as a desktop unit, the fume hood is space-saving, making it suitable for laboratories or workspaces where floor space is limited.

③ Features a high-efficiency filter designed to capture particles with a diameter greater than or equal to 0.3 micrometers, the filtering effect is 99.995%.

Model: T-600P, T-600N

Inner Size:(W*L*H)：480*340*370mm

Exterior Size: (W*L*H)：550*460*700mm

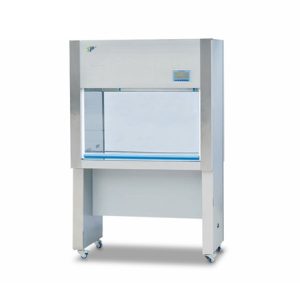

Model:T-CJ-1D, T-CJ-2D

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤5per utensil.hour (90mm utensil)

The average wind speed:0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

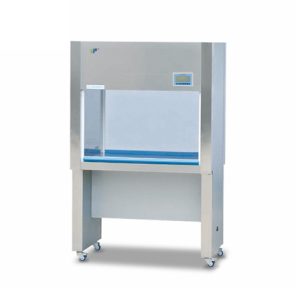

Model:T-CJ-1F, T-CJ-2F, T-CJ-3F

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤5per utensil.hour (90mm utensil)

The average wind speed：0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 880*510*580mm

Overall dimension (W*D*H): 1040*690*1600mm

Material: Steel and wood structure

Number of users: Single People/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 700*400*515mm

Overall dimension (W*D*H): 855*550*1600mm

Material: Steel and wood structure

Number of users: Single People/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1): 1150*410*580mm

Overall dimension (W*D*H): 1310*590*1600mm

Material: Steel and wood structure

Number of users: Double Persons/Single Side

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Economy type.

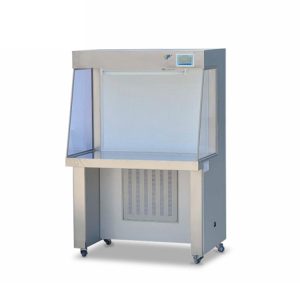

Model:T-CJ-1BU, T-CJ-1CU

Air Supply:Horizontal Air Supply

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Number of bacteria:≤0.5per utensil.hour (90mm utensil)

The average wind speed:0.25~0.45m/s

Material: Steel and wood structure

HEPA high-efficiency air filter and a primary filter for preliminary filtration.

Based on actual usage, when it is inconvenient to have sliding doors, such as venous configurations, choose this model.

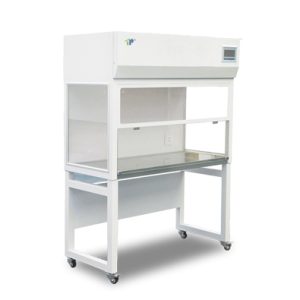

Model: T-PCR-2S

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1)：1150*510*580mm

Overall dimension (W*D*H)：1310*590*1620mm

Number of users: Double Persons/Single Side

HEPA filtration system: A positive pressure HEPA filtration system, which can form an uninterrupted ISO Class 5 air clean area in the sample preparation area.

The cavity can accommodate tube racks, racks, pipettes, microcentrifuges and thermal cyclers.

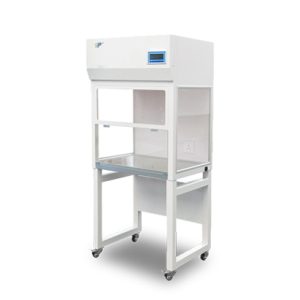

Model: T-PCR-1S

Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)

Dimension of working area (W1*D1*H1)：700*510*580mm

Overall dimension (W*D*H)：860*590*1620mm

Number of users: Single Person/Single Side

HEPA filtration system: A positive pressure HEPA filtration system, which can form an uninterrupted ISO Class 5 air clean area in the sample preparation area.

The cavity can accommodate tube racks, racks, pipettes, microcentrifuges and thermal cyclers.
