The Hotplate Magnetic Stirrer is a versatile laboratory instrument used for heating and stirring solutions simultaneously. It combines a heated surface with a magnetic stirrer, making it ideal for a wide range of chemical, biological, and medical applications where precise temperature control and uniform stirring are essential.
Model:TH Series
Work plate size:120*120, 170*170mm
Work plate material:Cast aluminium, Surface spraying
Max. stirring volume:2000, 5000ml
Speed range:100~2000rpm
Max temperature:380℃
Temperature control accuracy:–
Display:No
Data interface:No
Support clamp & temperature sensor: Optional
Model:TH Series
Work plate size:190*190mm
Work plate material:Aluminum tensile
Max. stirring volume:5000ml
Speed range:200～2000rpm
Max. temp:380℃, 350℃
Temperature control accuracy:1℃
Display:LCD
Data interface:No
Support clamp & temperature sensor:Optional
Model:P-H-S
Work plate size:φ135mm (5 inch)
Work plate material: Stainless steel cover with ceramic
Max. stirring volume: 20L
Speed range:100-1500rpm
Heating temperature range:Room Temp.-340°C
Temperature control accuracy:–
Display:No
Data interface:No
Support clamp & temperature sensor: Optional
Model:P-H-S10
Work plate size:180*450mm
Work plate material:Stainless steel with silicone
Max. stirring volume:0.4L*10
Speed range:10-1100rpm
Heating temperature range:Room temp.-120°C
Temperature control accuracy:–
Display:No
Data interface:No
Support clamp & temperature sensor: Optional
Model:P-H-ProT
Work plate size: φ135mm (5 inch)
Work plate material:Stainless steel cover with ceramic
Max. stirring volume:20L
Speed range:100-1500rpm
Heating temperature range:Room Temp.-340°C
Temperature control accuracy:±1°C
Display:LCD
Data interface:RS232
Support clamp & temperature sensor: Optional
It has an adjustable heating power and a magnetic stirrer that can be controlled separately. The device features an LCD screen that displays real-time temperature and stirring speed. It is commonly used in scientific research, medical, and industrial laboratories for various applications such as chemical synthesis, sample preparation, and quality control.
Model:P-H-PRO+
Work plate size:φ135mm (5 inch)
Work plate material:Stainless steel cover with ceramic
Max. stirring volume:20L
Speed range:100-1500rpm
Heating temperature range: Room temp.-340°C
Temperature control accuracy:±1°C
Display:LCD
Data interface:RS232
Support clamp & temperature sensor: Optional
The stirrer is equipped with a magnetic field that induces a rotating magnetic field in the stir bar, causing it to spin and mix the solution.
It features a digital display that allows for precise temperature and speed control, and a magnetic stirrer that can be adjusted for speed and direction.
Model:P-H280-PRO
Work plate size:184*184mm (7 inch)
Work plate material:Glass ceramic
Max. stirring volume:10L
Speed range:0-1500rpm
Heating temperature range:Room Temp.-550°C
Temperature control accuracy:±10°C
Display:LED
Data interface:RS232
Support clamp & temperature sensor: Optional
The Magnetic Hotplate Stirrer is a laboratory instrument that combines heating and stirring capabilities for various chemical and biological applications.
Model:P7-H550-S
Work plate size:184*184mm (7 inch)
Work plate material:Glass ceramic
Max. stirring volume: 10L
Speed range:0-1500rpm
Heating temperature range:Room Temp.-550°C
Temperature control accuracy:±10°C
Display:LED
Data interface:RS232
Support clamp & temperature sensor: Optional
Magnetic Hotplate Stirrer combines both heating and stirring functions in one unit. It is equipped with an LCD display that shows the temperature and stirring speed, making it easy to monitor the experiment. The hotplate magnetic stirrer is commonly used in scientific research, medical laboratories, and industrial applications. It is designed to be durable, reliable, and easy to use.

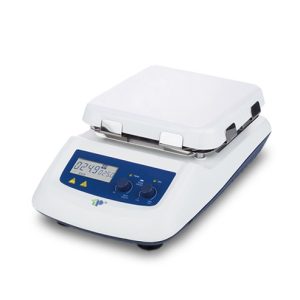

Model:P7-H550-PRO
Work plate size:184*184mm (7 inch)
Work plate material:Glass ceramic
Max. stirring volume:20L
Speed range:100-1500rpm
Heating temperature range:Room Temp.-550°C
Temperature control accuracy:±1°C
Display:LCD
Data interface:RS23
Support clamp & temperature sensor: Optional
