Vertical Laminar Flow Cabinets provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. Most vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Model:T-CJ-1D, T-CJ-2D
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: Steel and wood structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.
Economy type.
Model:T-CJ-1F, T-CJ-2F, T-CJ-3F
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤5per utensil.hour (90mm utensil)
The average wind speed：0.25~0.45m/s
Material: Steel and wood structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.
Economy type.

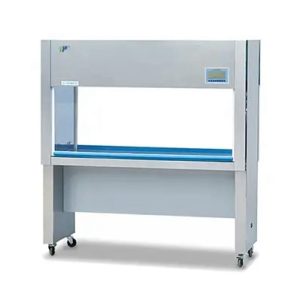

Model:T-CJ-1FD, T-CJ-2FD, T-CJ-3FD
Cleaning level:Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: Steel and wood structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.
Economy type.
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Dimension of working area (W1*D1*H1): 700*600*700mm
Overall dimension (W*D*H): 860*760*1760mm
Material: Steel and wood structure
Number of users: Single People/Single Side
HEPA high-efficiency air filter and a primary filter for preliminary filtration.
Economy type.
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Dimension of working area (W1*D1*H1): 700*600*700mm
Overall dimension (W*D*H): 860*760*1760mm
Material: All steel structure
Number of users: Single People/Single Side
HEPA high-efficiency air filter and a primary filter for preliminary filtration.

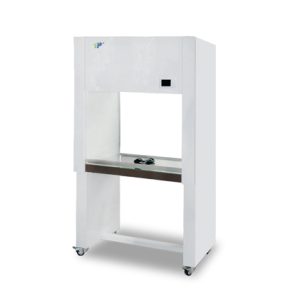

Model:TS-CJ-1D, TS-CJ-2D
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤0.5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: All steel structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.

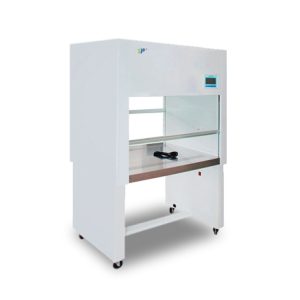

Model:TS-CJ-1F, TS-CJ-2F, TS-CJ-3F,
Cleaning level: Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤0.5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: All steel structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.

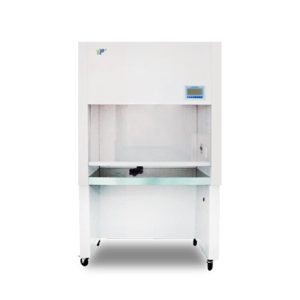

Model:TS-CJ-1FB, TS-CJ-2FB
Cleaning level:Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤0.5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: All steel structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.

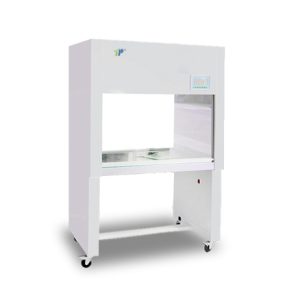

Model:TS-CJ-1FD, TS-CJ-2FD
Cleaning level:Grade 100≥0.5μM (209E U.S. Federal)
Number of bacteria:≤0.5per utensil.hour (90mm utensil)
The average wind speed:0.25~0.45m/s
Material: All steel structure
HEPA high-efficiency air filter and a primary filter for preliminary filtration.
