PCR (Polymerase Chain Reaction) instruments are essential tools in molecular biology for amplifying and analyzing specific DNA sequences.
PCR instruments enable precise temperature cycling to facilitate DNA denaturation, primer annealing, and enzymatic extension. Modern instruments often integrate advanced features like real-time fluorescence detection (qPCR) and high-resolution melt (HRM) analysis for product validation .
Types of PCR Instruments:
Conventional PCR Systems: Basic thermal cyclers for standard DNA amplification.
Gradient PCR Systems: Allow simultaneous testing of multiple annealing temperatures to optimize reaction conditions .
Real-Time Quantitative PCR (qPCR): Equipped with fluorescence detection for quantifying DNA during amplification .
Digital PCR (dPCR): Enables absolute quantification of nucleic acids by partitioning samples into thousands of micro-reactions .
Rapid PCR Systems: Reduce cycling times through advanced heating/cooling technologies .

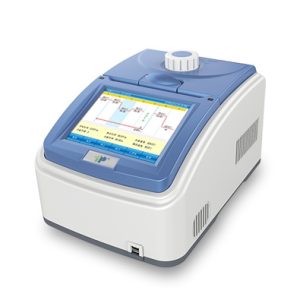

Model: TE4T
Capacity:120×80mm
Temperature Range: 0-100 ℃
Maximum heating and cooling rate:4℃/s, 3℃/s
Uniformity:≤±0.2℃
Accuracy:≤±0.1℃
Characteristic: With USB interface, real time display, color capacitive touch screen

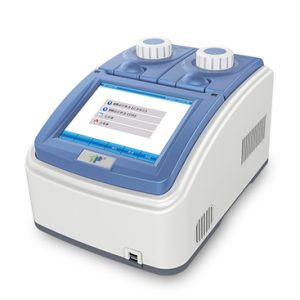

Model:TE9612T, TE9632T, TE4852T, TE4832T, TE3842T
Capacity:96*0.2ml, 96*0.2ml+77*0.5ml, Double 48*0.2ml, 48*0.2ml+30*0.5ml, 384 well
Temperature Range:0-100 ℃
Maximum heating and cooling rate:5℃/s, 4℃/s
Uniformity:≤±0.2℃
Accuracy:≤±0.1℃
Characteristic:Built-in WIFI, TFT touch screen,Stepless adjustable hot lid with pressure-protection

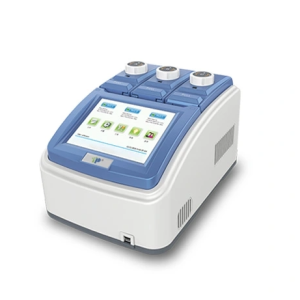

Model: TET3X, TET3XG
Capacity:3*(32*0.2ml )
Temperature Range:0-100 ℃
Maximum heating and cooling rate:5℃/s, 4℃/s
Uniformity:≤±0.3℃
Accuracy:≤±0.2℃
Characteristic:Support U disk to store and copy PCR data, TFT touch screen

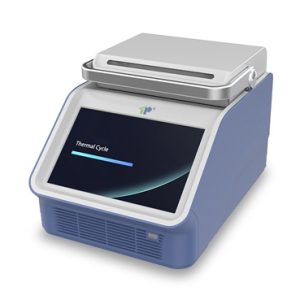

Model:TePure-A, TePure-A(F), TePure-A(384), TePure-B, TePure-C
Capacity:96*0.2ml, 384 well, 6*16*0.2ml
Temperature Range:0-105 ℃
Maximum heating and cooling rate:5℃/s, 6℃/s, 8℃/s
Uniformity:≤±0.2℃
Accuracy:≤±0.1℃
Characteristic:Support USB to store and copy PCR data, 10.1 inch capacitive touch screen

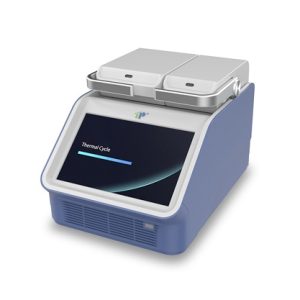

Model:TePure D series
Capacity:64*0.2ml (A Block) + 32*0.2ml (B Block)
Temperature Range:0-150 ℃
Maximum heating and cooling rate:8℃/s
Uniformity:≤±0.2℃
Accuracy:≤±0.1℃
Characteristic:Support USB to store and copy PCR data, color touch screen

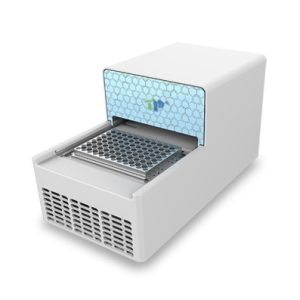

Model: AUTO-96T
Capacity:96*0.2ml
Temperature Range:0-100 ℃
Maximum heating and cooling rate:5℃/s, 4℃/s
Uniformity:≤±0.3℃
Accuracy:≤±0.2℃
Characteristic:With USB port or RS232 / RS485 port, Automatic power-off protection

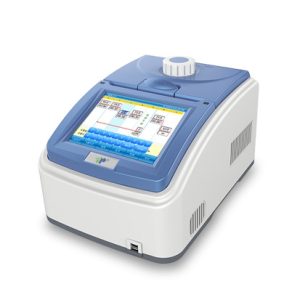

Model:TET96-PLUS
Capacity:96*0.2ml (6 independent 16 well block)
Temperature Range:4-100 ℃
Maximum heating and cooling rate:6℃/s, 4℃/s
Uniformity:≤±0.3℃
Accuracy:≤±0.2℃
Characteristic:Support USB and LAN to update software, TFT color touch screen

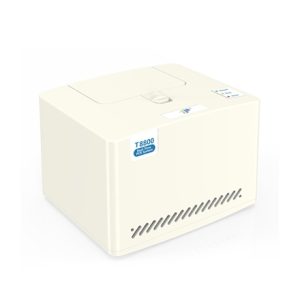

Model: T8800
Sample Capacity:8*0.2ml (8 well)
Reaction Volume:15-100μl
MAX. Ramp Rate:7℃/s
Excitation wavelength:F1:470nm F2:523nm F3:571nm F4:628nm
Emission wavelength:F1:525nm F2:571nm F3:612nm F4:692nm
Factory Calibrated Dyes:F1: FAM/SYBR GreenI F2: HEX/VIC/JOE/TET F3: ROX F4: CY
Feature function:Quantitative/qualitative, melting curve, genotyping
Display:Output data to PC
Model:T3202, T3204
Sample Capacity:32*0.2ml(4*8well, dual block)
Reaction Volume:10-100μl
MAX. Ramp Rate:5℃/s
Excitation wavelength:F1: 470nm F2: 523nm F3: 571nm F4: 628nm
Emission wavelength:F1: 525nm F2: 571nm F3: 612nm F4: 692nm
Factory Calibrated Dyes:F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5
Feature function:Quantitative/qualitative analysis, Melting curve, Genotyping
Display:7 inch color TFT touch screen

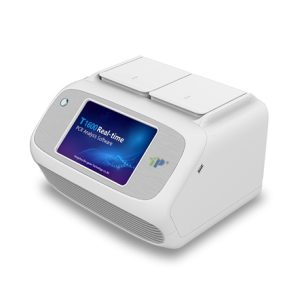

Model:T1601, T1602, T1604-F
Sample Capacity:16*0.2ml (2*8well, dual block)
Reaction Volume:10-100μl, 15-100μl
MAX. Ramp Rate:6℃/s, 7℃/s
Excitation wavelength:F1: 470nm F2: 523nm F3: 571nm F4: 628nm
Emission wavelength:F1: 525nm F2: 571nm F3: 612nm F4: 692nm
Factory Calibrated Dyes:F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5
Feature function:Quantitative/qualitative analysis, Melting curve, Genotyping
Display:7 inch color TFT touch screen
