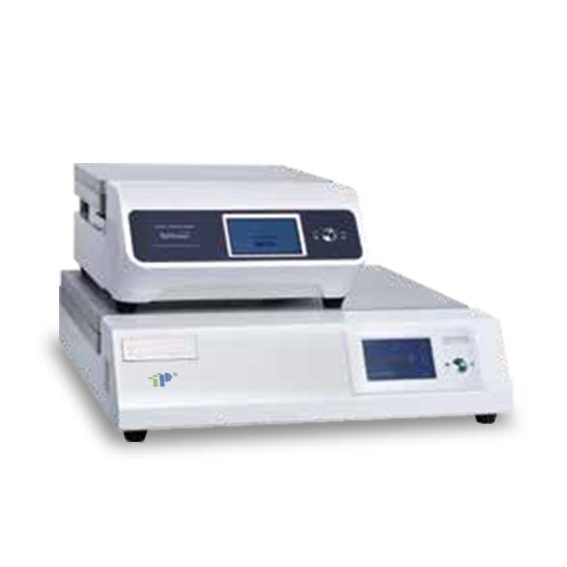

Aluminium Hot Plate
Hot Plate are widely used in experiments and laboratories such as food, agriculture, soil, environmental protection, food, scientific research institutes, universities and colleges. Can be used for sample heating, drying, digestion, acid removal, etc.
Model: PRB-400L/PRB-600L
Work plate size:380*290, 600*400
Work plate material:Aluminum alloy coating
Max. temperature range:350℃
Temperature control accuracy:±1℃
Display:5.5-inch color touch screen
Description
Features:
- The L series hot plate heating body is made of aluminum alloy casting with surface finishing treatment. The design temperature is as high as 350°C. It has good thermal conductivity, uniform temperature, large effective heating area and fast temperature rise.
- The temperature control system uses a 5-inch color touch screen, which is easy to operate.
- The program input adopts table-format fast input method, which has clear logic, fast speed and less error.
- 0-40 segment programs can be selected and set arbitrarily.
- Single point heating and curve heating modes can be selected at will.
- Intelligent P, I, D self-tuning temperature control has high precision, reliability and stability.
- The electrical control system uses solid-state relays, which are quiet and have strong anti-interference capabilities.
- The segmented power supply and anti-power outage restart functions can avoid potential risks.
Specification:
| Model | PRB-400L | PRB-600L |
| Working desk size | 380*290 | 600*400 |
| Workbench material | Aluminum alloy coating | |
| Set tempreture | RT-350C | |
| Temperature control accuracy | ±1℃ | |
| temperature control system | 5.5-inch color touch screen, 1-40 segment program heating/single point heating dual mode | |
| Recipe management | 9 groups | |
| Scheduled shutdown | Any setting from 1 to 999 minutes | |
| Operating Voltage | AC220V/50Hz | |
| Heating power | 1500W | 2500W |
