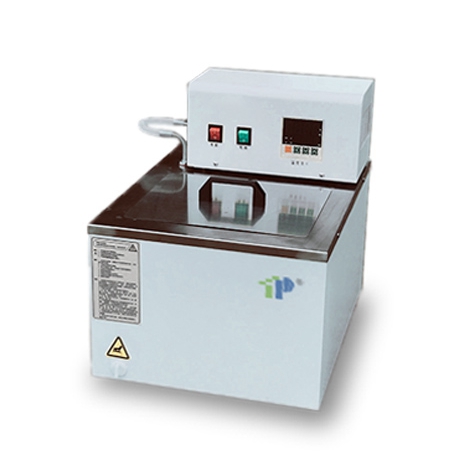

Constant Temperature Bath
The constant temperature bath adopts a microcomputer liquid crystal temperature controller and has dual functions of internal and external circulation. It is a precision product suitable for experimental science fields such as biology, physics, plants, chemicals, medical care, and environmental protection, or for auxiliary heating.
Model:PH-601 , PH-SA
circulating water pump :Inner loop / Outer loop
Temp. Range :RT+5℃-100.0℃; Room temperature + 5℃-300.0℃
Temp. Uniformity :≤±0.05℃
Volume :24L
Over temperature alarm :Yes
Material :stainless steel ( Inner liner )
Description
Features of Constant Temperature Bath:
- It adopts a microcomputer LCD temperature controller with language display function for various working conditions and accurate temperature control; the temperature controller has temperature display and constant temperature timing decrement display functions, and error correction function between displayed temperature and actual temperature; over-temperature protection and over-temperature buzzer It has prompt function and is easy to operate.
- The inner tank is made of 304 stainless steel plate and advanced technology, and has dual functions of internal and external circulation.
- External circulation water inlet and outlet: outer diameter 10mm. The external circulation can lead the constant-temperature liquid in the tank out to establish another constant temperature field. It can also be used as a heat source to lead the liquid in the tank out, which can increase the temperature of the experimental container outside the tank. Expand the scope of use.
- Stainless steel heating tube: prevent rust, high viscosity oil cannot use this product.
- Built-in circulation pump: The circulation pump can improve the consistency and accuracy of the working temperature and make the temperature of the water (oil) in the tank more uniform.
- External faucet: convenient for cleaning and draining waste oil or excess heating oil in the tank.
Specification of Constant Temperature Bath:
| Specification | Water bath | Oil bath | ||
| Model | PH-601 | PH-SA | ||
| Picture |  |
 |
||
| Cycle mode | Inner loop | Outer loop | Inner loop | Outer loop |
| Power supply | 220V 50Hz | |||
| Temperature range | Room temperature + 5℃-100.0℃ | Room temperature + 5℃-300.0℃ | ||
| Constant temperature fluctuation | ≤0.3 degrees/0.05 | |||
| Temperature resolution | 0.1℃/0.01℃ | |||
| Heating power | 1200W/1500w | |||
| Constant temperature setting and measurement | Digital control | |||
| Timing range | 0-999min/0-999H | 1-9999min | ||
| Water pump flow rate | ≥8 liters/min | ≥6 L/min | ≥8 liters/min | ≥6 L/min |
| Water pump power | 40w | |||
| Inner tank size | 400*300*200mm | |||
| Overall dimensions | 470*370*410mm | |||
| Weight (approximately) | About 13KG | |||
| Opening size | 290*235mm | |||
