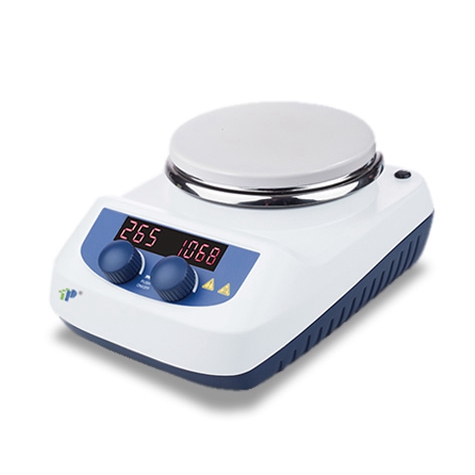

Digital Magnetic Hotplate Stirrer, 550°C, P-H280-PRO
The stirrer is equipped with a magnetic field that induces a rotating magnetic field in the stir bar, causing it to spin and mix the solution.
It features a digital display that allows for precise temperature and speed control, and a magnetic stirrer that can be adjusted for speed and direction.
Model:P-H280-PRO
Work plate size:184*184mm (7 inch)
Work plate material:Glass ceramic
Max. stirring volume:10L
Speed range:0-1500rpm
Heating temperature range:Room Temp.-550°C
Temperature control accuracy:±10°C
Display:LED
Data interface:RS232
Support clamp & temperature sensor: Optional
Description
Features:
- Digital temperature control with max. temperature up to 580°C.
- Digital speed control with max. speed up to 1500rpm.
- Stainless steel work plate with ceramic coating provides good chemical resistant performance.
- External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C.
- LED display shows temperature and speed.
- The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off.
Specification:
| Work plate Dimension [W*D] | 184*184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Shaded pole motor |
| Motor rating input | 15W |
| Motor rating output | 1.5W |
| Power | 1030W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 10L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 0-1500rpm |
| Speed display | Scale |
| Temperature display | LED |
| Heating temperature range | Room temp.-550°C, increment 5°C |
| Temperature control accuracy | ±10°C |
| Overheating protection | 580°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| “Hot” warning | 50°C |
| Protection class | IP21 |
| Dimension [W*D*H] | 215*360*112mm |
| Weight | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
