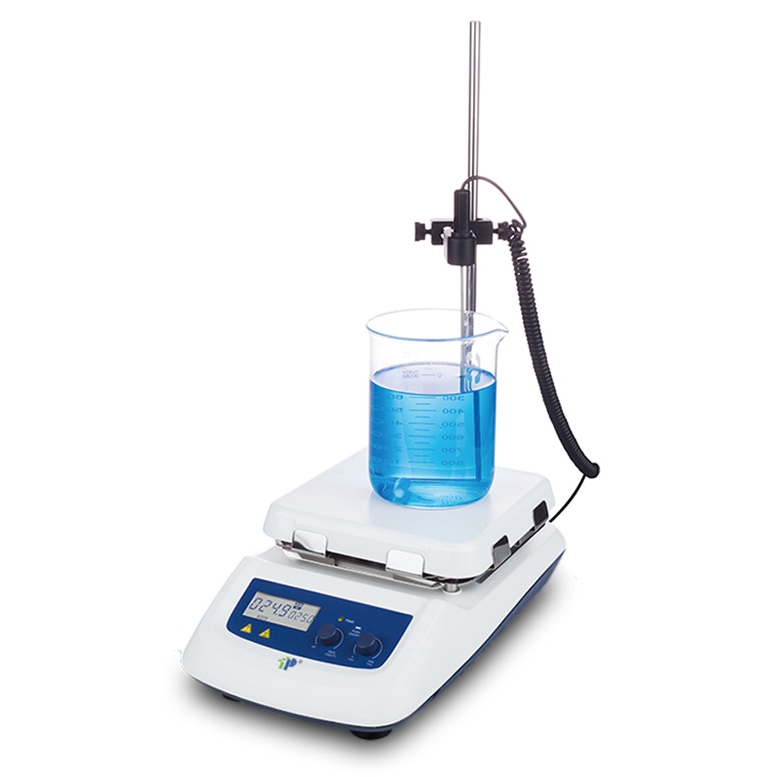

LCD Digital Hotplate Magnetic Stirrer, 550°C
Magnetic Hotplate Stirrer combines both heating and stirring functions in one unit. It is equipped with an LCD display that shows the temperature and stirring speed, making it easy to monitor the experiment. The hotplate magnetic stirrer is commonly used in scientific research, medical laboratories, and industrial applications. It is designed to be durable, reliable, and easy to use.
Model:P7-H550-PRO
Work plate size:184*184mm (7 inch)
Work plate material:Glass ceramic
Max. stirring volume:20L
Speed range:100-1500rpm
Heating temperature range:Room Temp.-550°C
Temperature control accuracy:±1°C
Display:LCD
Data interface:RS23
Support clamp & temperature sensor: Optional
Description
Features:
- Microprocessor PID controls.
- LCD display with speed and temperature control knobs.
- Ceramic workplate with a high power of 1050W reaches a maximum temperature of 550°C.
- Max. heating temperature of 550°C.
- Ceramic workplate of 184*184mm.
- Speed is adjustable from 100 to 1500rpm.
- “Hot” safety indication on LCD when the plate temperature is above 50°C.
- PT1000 external temperature sensor for precise temperature control.
- RS232 interface enables data preservation and control by a PC.
Specification:
| Workplate dimension [W*D] | 184*184mm (7 inch) |
| Workplate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V
50/60Hz |
| Stirring positions | 1 |
| Max. stirring volume [H2O] | 20L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 100-1500rpm
resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,
increment 1°C |
| Temperature contol accuracy | ±1°C (<100°C)
±1% (>100°C) |
| Overheating protection | 580℃ |
| Temperature display resolution | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| “Hot” satety indication | 50℃ |
| Data interface | RS232 |
| Protection class | IP21 |
| Dimension [W*D*H] | 215*360*112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40C,80%RH |
