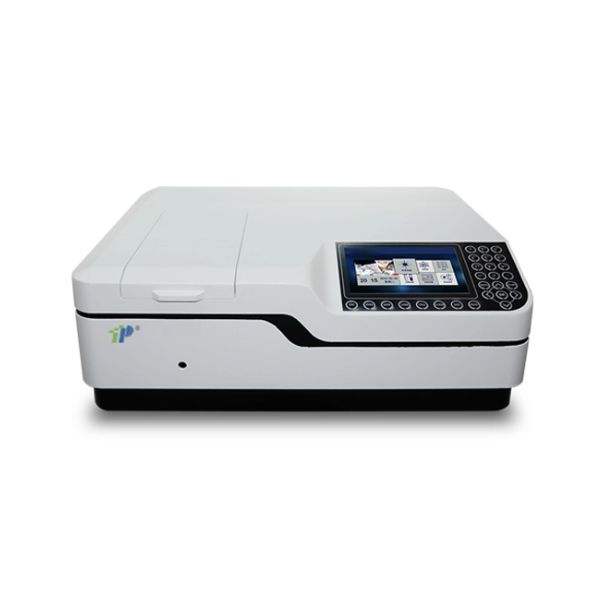

Double Beam UV-Vis Spectrophotometer

Double Beam UV-Vis Spectrophotometer

Model: PT2600
Optical system: Proportional double beam 1200 lines/mm holographic grating
Wavelength range: 190-1100nm
Wavelength accuracy: ±0.3nm
Spectral bandwidth: 2nm
Wavelength repeatability: ≤0.1nm
Scattered light: 0.1%T at 420nm, ≤0.05%T at 220nm, 340nm
Data output: RS232C, USB
PC software available: Yes(Optional)

Category:

Description

Double Beam UV-Vis Spectrophotometer PT2600 has a brand-new optical path design, and superior instrument performance, which can greatly meet the analysis work needs of the most professional users.

Features:

  • 7-inch TFT large-screen true-color LCD display, Omron light-touch buttons, more comfortable to use, and will not be damaged after tens of thousands of uses. The super-large screen display directly displays various scanning curves and maps.
  • Support U disk storage, data opening and editing does not require any professional auxiliary software support, can support excel, txt format, picture format, and can output four formats: *.csv, *.qua. *.tet, *.bmp.
  • Data output: with RS-232C serial port (printing), USB drive (online), USB HOST (connected to U disk), standard 16GB memory.
  • It is the first in the industry to use the advanced ARM11 processor, which can store 2000 test data or 500 working curves.
  • Suspension-type optical system design, strengthen the design of thickened aluminum base plate, eliminate the impact of vibration or deformation on the optical system; double-layer design, completely separate the parts of the optical circuit and improve the resolution and stability of the instrument.
  • The instrument adopts the national patented photoelectric signal detection device to make the instrument signal-to-noise ratio lower and the instrument more stable.
  • Optional built-in fully automatic sampling flow path system, which is convenient for customers to use and greatly facilitates customers’ use.
  • An optional 8-section automatic cuvette holder with a rotating patented design ensures that when the light passes through the cuvette, it is completely centered and improves the performance of the instrument.

Specification:

Optical system Proportional double beam 1200 lines/mm holographic grating
Spectral Bandwidth 2.0nm
Wavelength range 190-1100nm
Wavelength accuracy ±0.3nm
Wavelength repeatability ≤0.1nm
Wavelength resolution 0.1nm
Data display 7-inch 800*480 color graphic LCD display
Stray light ≤0.1%T at 420nm, ≤0.05%T at 220nm, 340nm
Noise 0%≤0.05%T、100%≤0.1%T
Photometric range 0-200%T，-3-3A，0-9999C（0-9999F）
Photometric accuracy ±0.3%T
Transmittance repeatability ≤0.1%T
Baseline straightness ±0.001Abs
Light source Deuterium lamp, tungsten lamp
Data output RS-232C serial port (print), USB drive (online), USB HOST (connect to U disk)
Processor Processor Cotex_M3 main frequency 120Mhz
