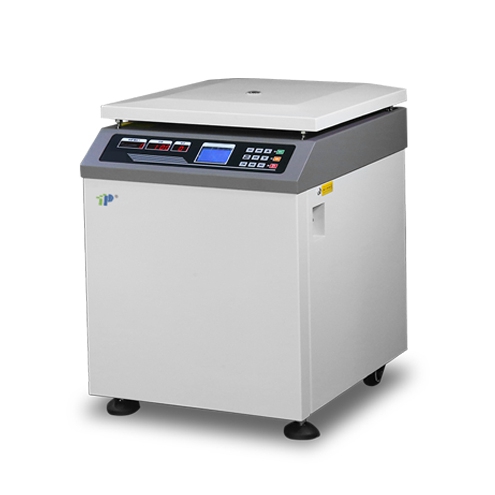

Floor Standing Low Speed Large Capacity Centrifuge
This machine adopts brushless frequency conversion driving, liquid crystal display, stainless steel centrifugal chamber, electronic safe locks and protection for imbalance. Real-time rotate speed and time are displayed over time. Operation parameters of instruments can be modified in operation. It can store 12 operation procedures and there are 19 levels of acceleration and deceleration for your choice. It is widely used in radio-immunity, biochemistry, blood products, environmental protection and other research and manufacturing institutions. Particles with different density in the solution can be separated.
Model: TDD-5000
Type:Floor type
Maximum speed:5000 r/min
Max. RCF:5200*g
Maximum capacity:4*750ml (4000rpm)
Temperature control:No
Display:LCD
Operation:Touch buttons
Description
Features:
- Inverter motor drive.
- Dual screen display.
- Stainless steel inner cavity, electronic safety door lock, unbalance protection.
- Automatic fault diagnosis.
- RCF can be set and displayed directly without RPM/RCF conversion.
- Speed and time are displayed in real time, and the parameters can be changed during the operation of the instrument.
- 12 commonly used programs can be stored, and the speed up and down speed can be adjusted in 40 levels.
- Adopt imported well-known brand frequency conversion controller, accurate speed control and durable.
- All-steel body, three-layer protective steel sleeve to ensure safety.
- Using a three-axis gyroscope to dynamically monitor the balance state throughout the process.
Specification:
| Maximum speed | 5000 r/min |
| Max. RCF | 5200*g |
| Maximum capacity | 4*750ml (4000rpm) |
| Speed accuracy | ±10 r/min |
| Timing range | 1min~99H59 min |
| Noise | ≤60dB (A) |
| Power supply | AC 220V 50HZ 15A |
| Power | 1.1KW |
| Dimensions | 650*550*840(L*W*H)mm |
| Weight | 135kg |
