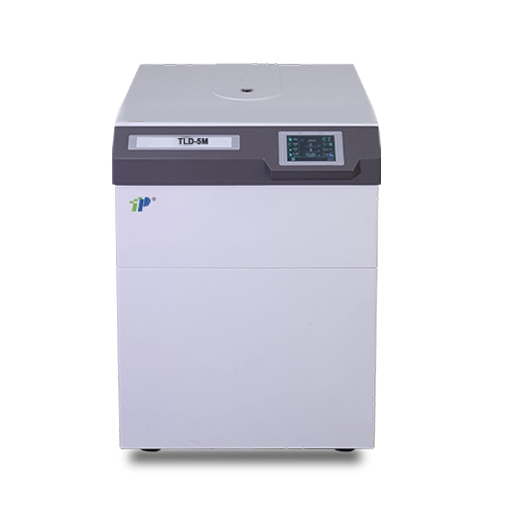

Floor-Standing Low-speed Refrigerated Centrifuge

This Floor-Standing Centrifuge is driven by a brushless variable frequency motor, controlled by a microcomputer, with LCD and digital dual-screen display, stainless steel centrifugal chamber, electronic safety door lock, and unbalance protection. Parameters such as speed, centrifugal force, time, temperature, etc. can be changed during operation.

Model: TLD-5M

Type:Floor type

Maximum speed:5000 r/min

Max. RCF:5200*g

Maximum capacity:4*800ml (4000rpm)

Temperature control:-20°C~40°C

Display:LCD

Operation:Touch screen

Description

Features:

  • Touch screen operation, direct digital input for parameter setting, accurate to one digit.
  • Intelligent status prompt, real-time display of instrument status.
  • 5 sets of multi-speed gradient centrifugation programs can be edited and saved.
  • Time display, year, month, day, hour, minute, second, convenient for retrospective use records.
  • Two timing modes of hours.minutes and minutes.seconds are available, and two modes of timing and countdown are optional.
  • 40 levels of speed can be adjusted, and when the speed drops to 500rpm~0, the curve is used to slow down to prevent the sample from reverberating.
  • Speed speed, centrifugal force and temperature curves are displayed on the same screen to monitor the change process and stability of each parameter.
  • Password lock function, the user can set a password to lock the parameters of the host or program group.
  • Automatic conversion of speed and centrifugal force, displayed on the same screen, no need to convert.
  • It has multiple protection functions such as door cover, overspeed, overtemperature, overcurrent, overvoltage, overheating, etc., and the voice and text prompt and display the solution at the same time, which is more stable and reliable.
  • Equipped with electronic manual, never lost, easy to use.
  • Remote switch on/off is optional.

Specification:

Maximum speed 5000 r/min
Max. RCF 5200*g
Maximum capacity 4*800ml (4000rpm)
Speed accuracy ±10 r/min
Temperature setting range -20°C~40°C
Temperature control accuracy ±1℃
Timing range 1min~99H59 min
Noise ≤60dB (A)
Power supply AC 220V 50HZ 15A
Power 1.8KW
Dimensions 650*550*840(L*W*H)mm
Weight 150kg
