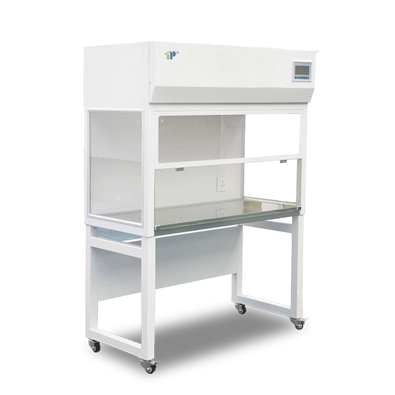

HEPA-filtered PCR Workstation

Description

PCR Workstations are specialised laminar flow enclosures designed to minimise contamination risks during polymerase chain reaction (PCR) processes. Ideal for laboratories prioritising precision, these workstations ensure a controlled, clean environment for sensitive DNA amplification. Features include HEPA-filtered airflow, ergonomic designs, and advanced UV sterilization. Suitable for research, diagnostics, and medical labs, these workstations enhance efficiency and sample integrity.

Features:

• The ultra-clean workbench for PCR draws air from the laboratory, enters the operation area through a two-stage filtration system, forms a clean area, and finally discharges it into the laboratory.
• The system includes a positive pressure HEPA filtration system, which can form an uninterrupted ISO Class 5 air clean area in the sample preparation area.
• The cavity can accommodate tube racks, racks, pipettes, microcentrifuges and thermal cyclers.
• The control system adopts intelligent microcomputer control, blue display screen, and digital indication of various parameters.
• The work surface is made of integrated stainless steel, which is easy to clean.
• The 10° inclined operation surface at the front is more ergonomic and more comfortable to operate.
• The quasi-closed table top has a stepped design at the front end. When the front window is completely closed, it can more effectively prevent the introduction of external air.
• Interlock function of lighting and sterilization system, with spare socket design, safe and convenient to use.
• The cabinet adopts cold-rolled steel plate spraying process, and the appearance is finely sprayed.
• The glass door of the hanging lifting system can be opened up and down, and the operation is convenient and flexible.
• Integrated design of built-in HEPA high-efficiency filter, the clean air flow covers the entire working area, and the wind speed and cleanliness are better.

Specification：
