Horizontal laminar flow cabinet provides a sterile work zone through a purified air that travels in a horizontal, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.

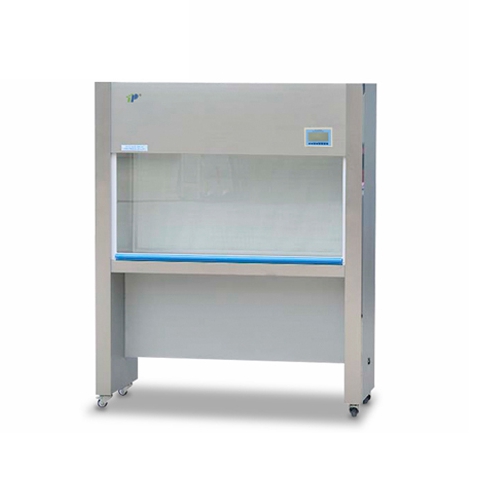

T-CJ-2G Laminar Flow Cabinet is double person/single side work bench device, now the best budget laminar flow cabinet for sale at affordable price.
T-CJ-2G Laminar Flow Cabinet Features:
- Arbitrary positioning sliding door system is adopted.
- The shell is welded by cold-rolled plate, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
- Safety interlocking of lighting and sterilization system, and UV lamp timing function (except 1BU and 1CU).
- Digital display LCD control interface, more humanized design.
- The vertical quasi-closed table top and the formation of the downflow air curtain in the operation room can effectively prevent the external gas from entering and clean the operation area.
- Equipped with a HEPA high-efficiency air filter, and a primary filter for preliminary filtration, which can effectively extend the high-efficiency filter.
T-CJ-2G Laminar Flow Cabinet Specification:
| Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) |
| Number of bacteria | ≤0.5per utensil.hour (90mm utensil) |
| The average wind speed | 0.25~0.45m/s |
| Noise | ≤62dB (A) |
| Half ventilation peak value | ≤5μm (XYZ direction) |
| Illumination | ≥300LX |
| Power supply | AC, 220V/50Hz |
| Max. power consumption | 500W |
| Weight | 110kg |
| Dimension of working area (W1*D1*H1) | 1150*410*580mm |
| Overall dimension (W*D*H) | 1310*590*1600mm |
| Suited number | Double/Single |
| Efficient filter specifications and quantities | 1130*565*50*① |
| Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 12W*①/30W*① |
