Introduction:

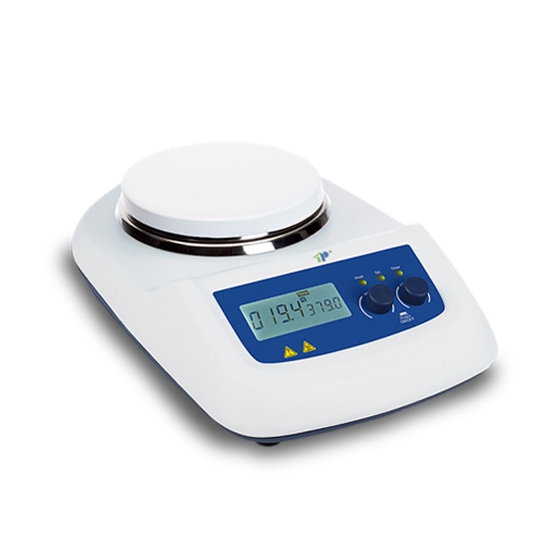

This Magnetic Hotplate Stirrer is a versatile laboratory instrument that combines heating, stirring, and timing functions. The built-in timer function enables users to set a specific duration for their experiments or reactions. This device is widely used in scientific research, pharmaceutical development, and quality control laboratories for various applications such as chemical reactions, sample preparation, and titrations.
Features:
- LCD digital control of speed, temperature and time.
- Brushless DC motor with 550W power.
- Speed setting range up to 1500rpm.
- RS232 interface provides PC control and data transmission.
- Ceramic workplate with max. temperature of 340°C.

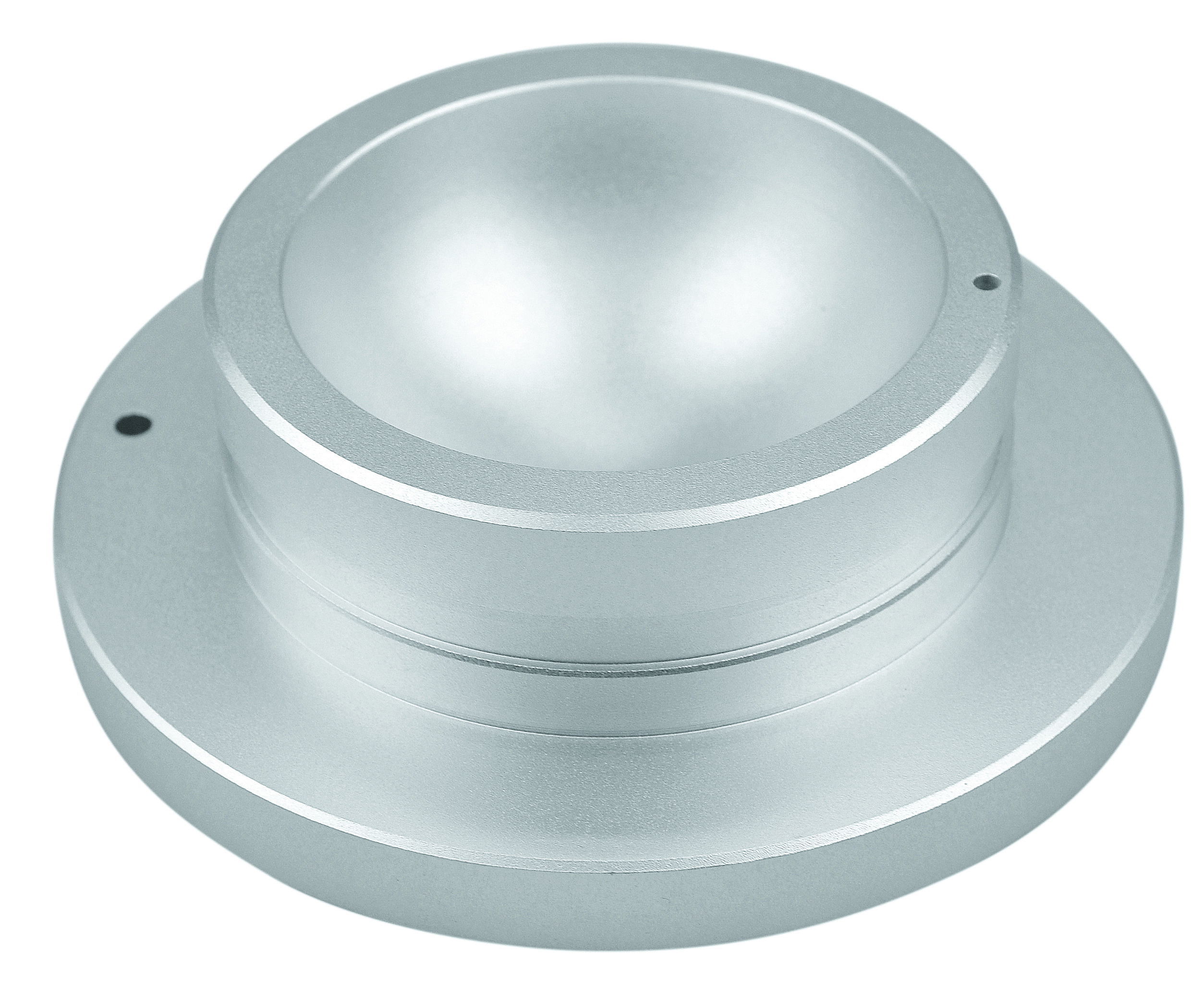

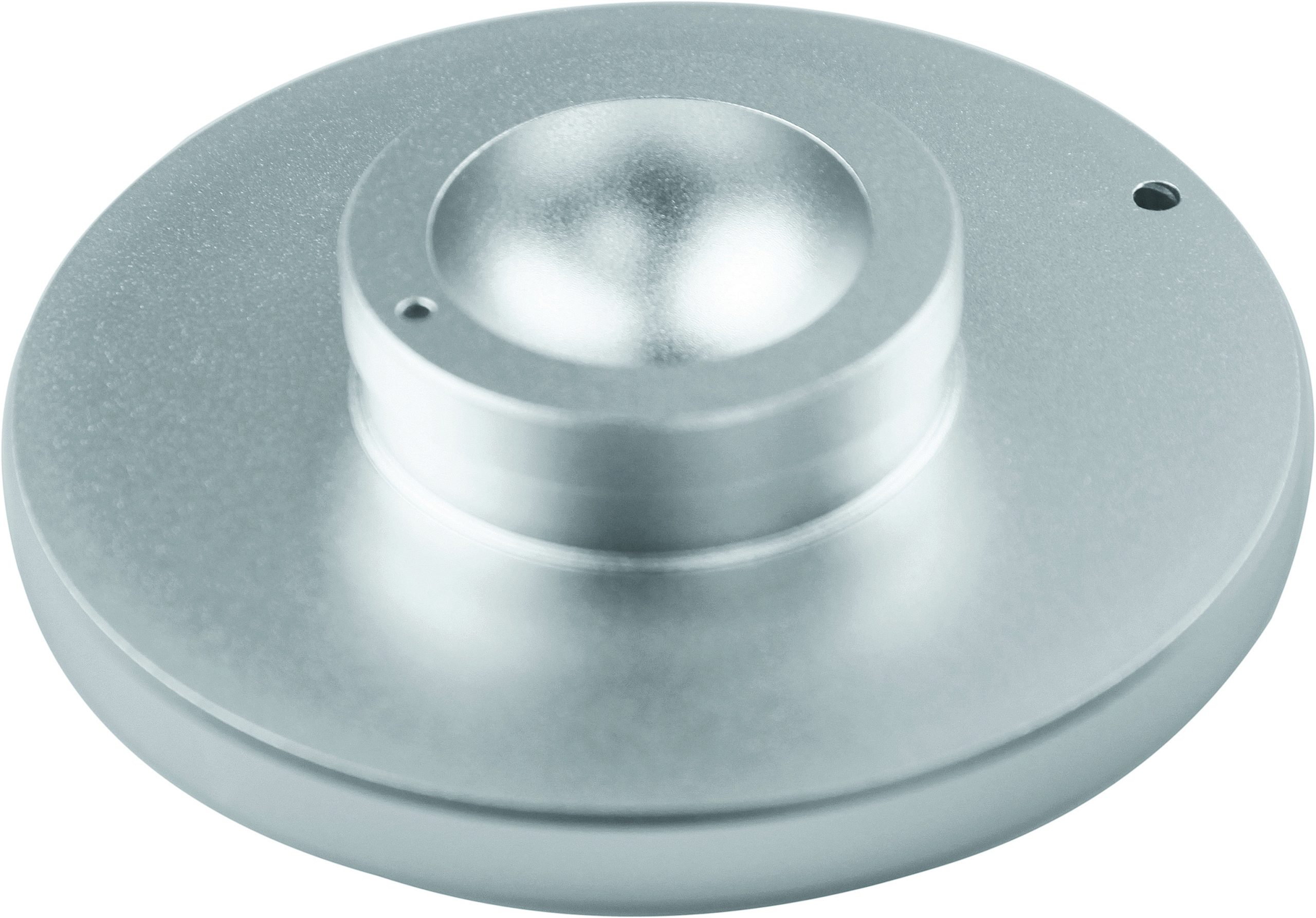

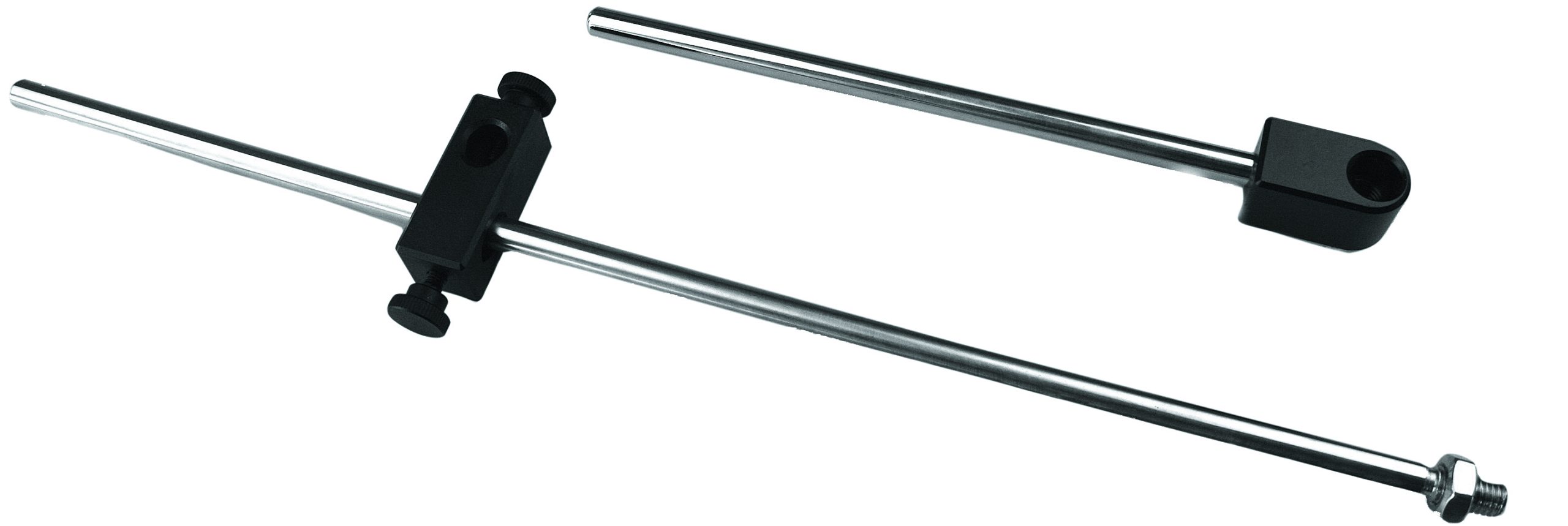

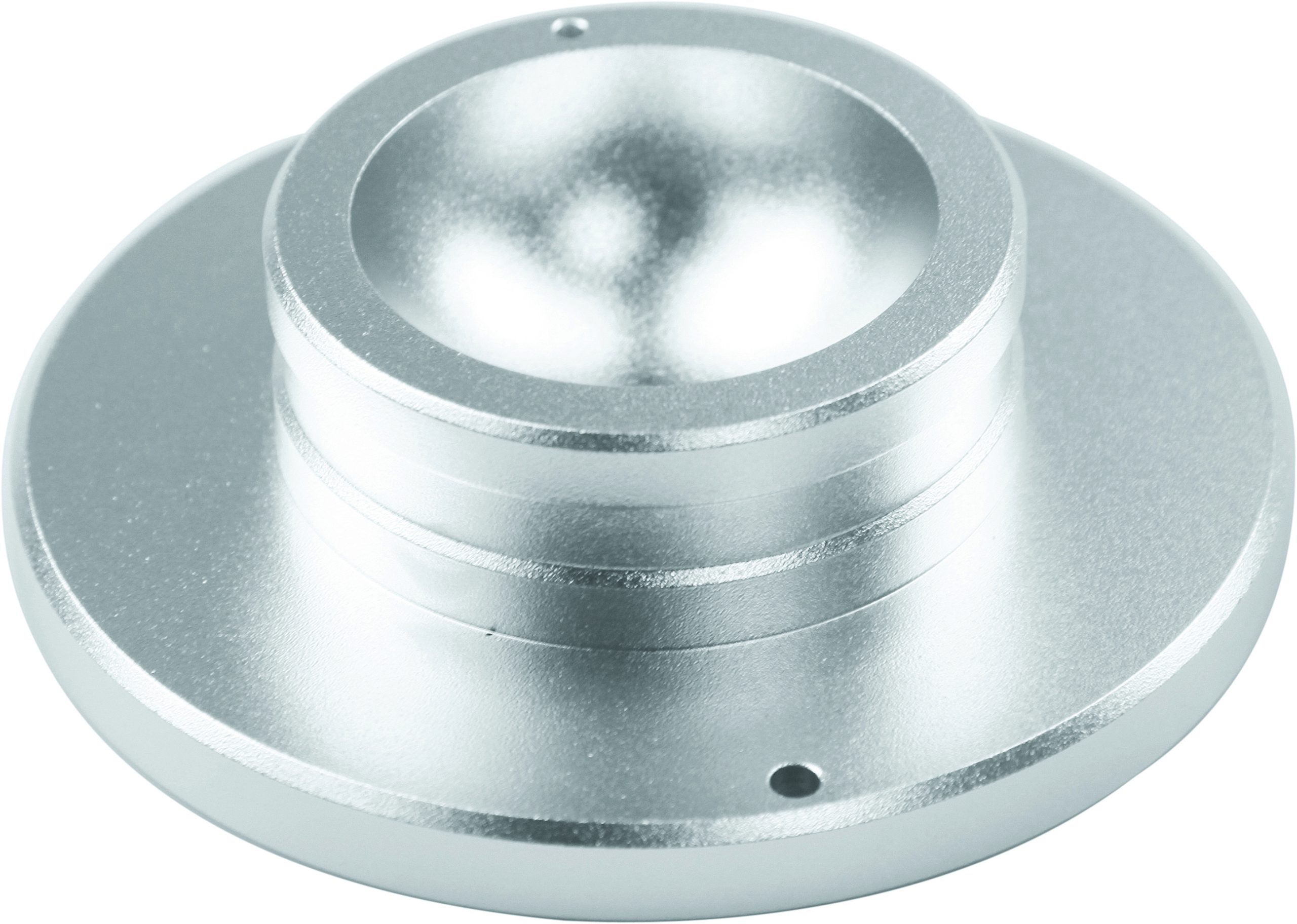

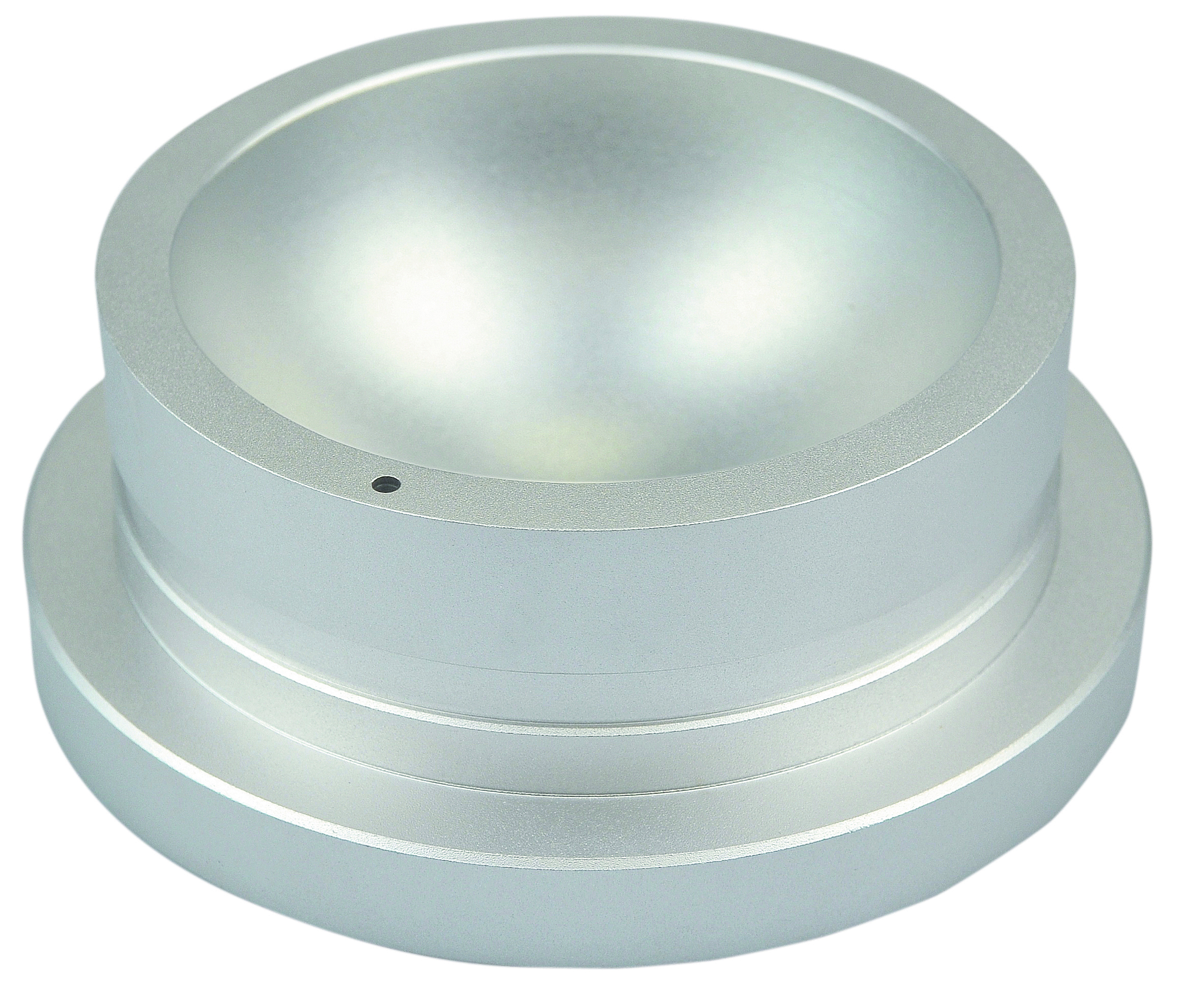

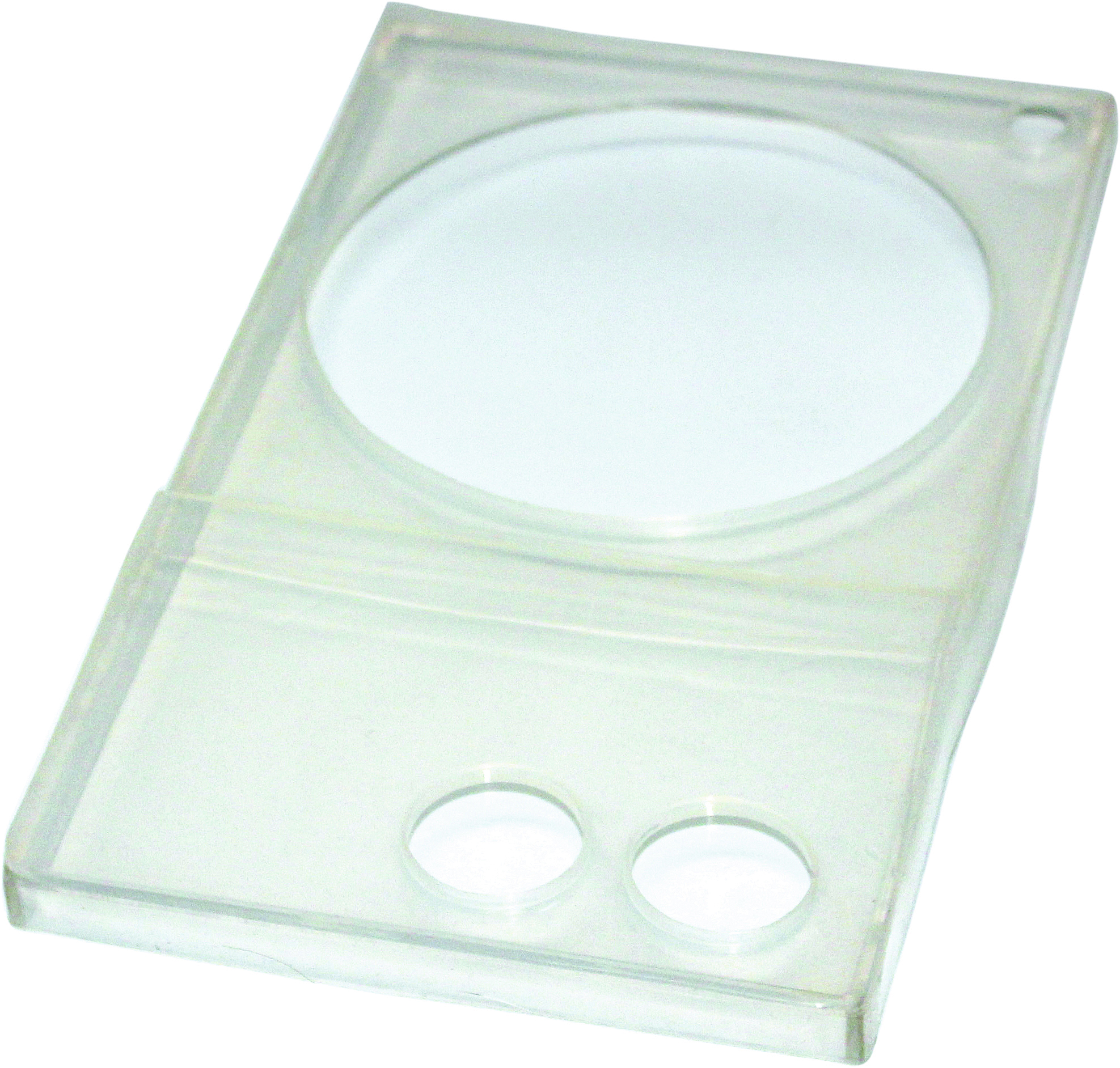

- Various optional accessories make it suitable for many applications.
- “Hot” safety indication on LED when the plate temperature is above 50°C.

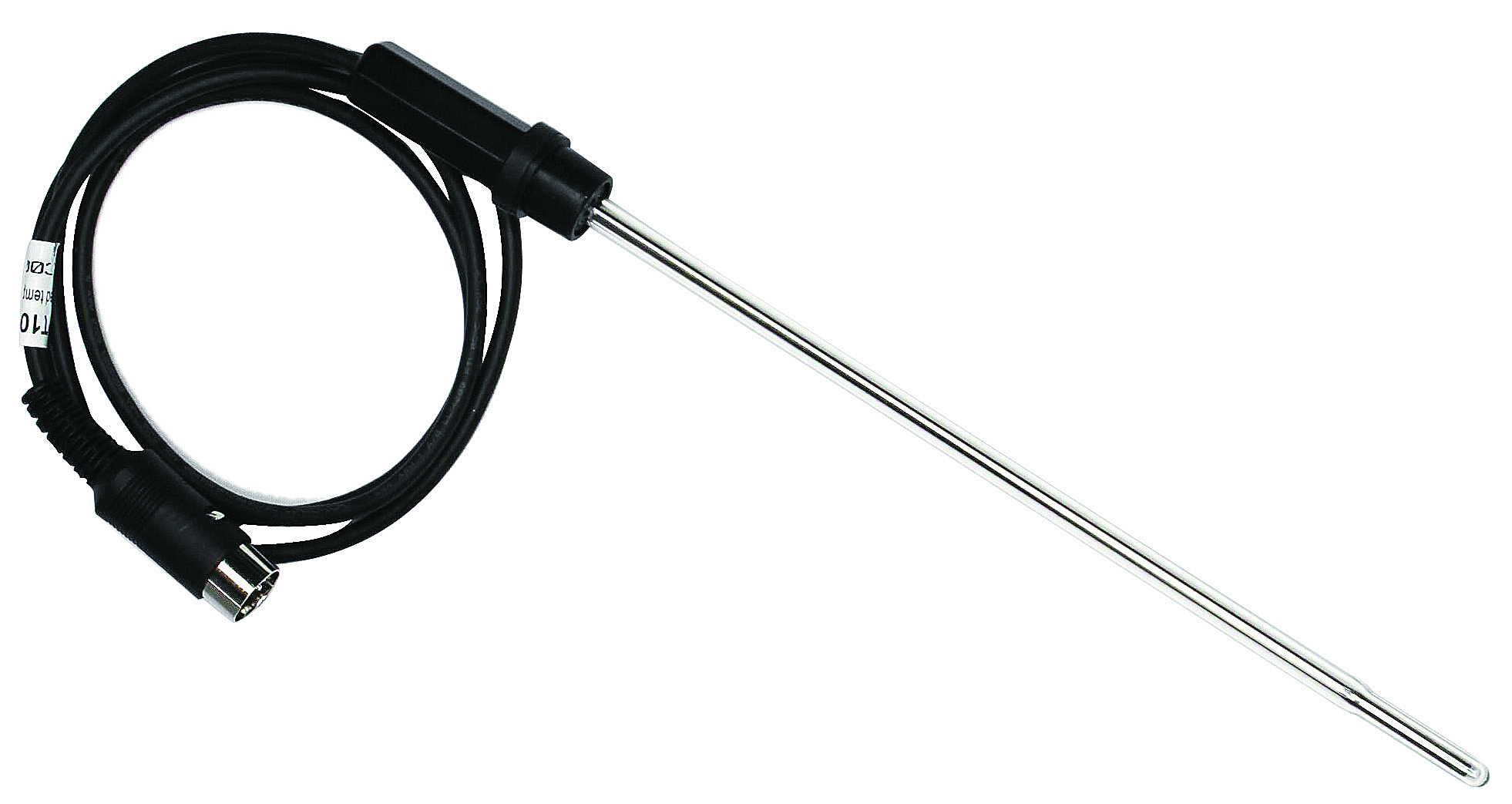

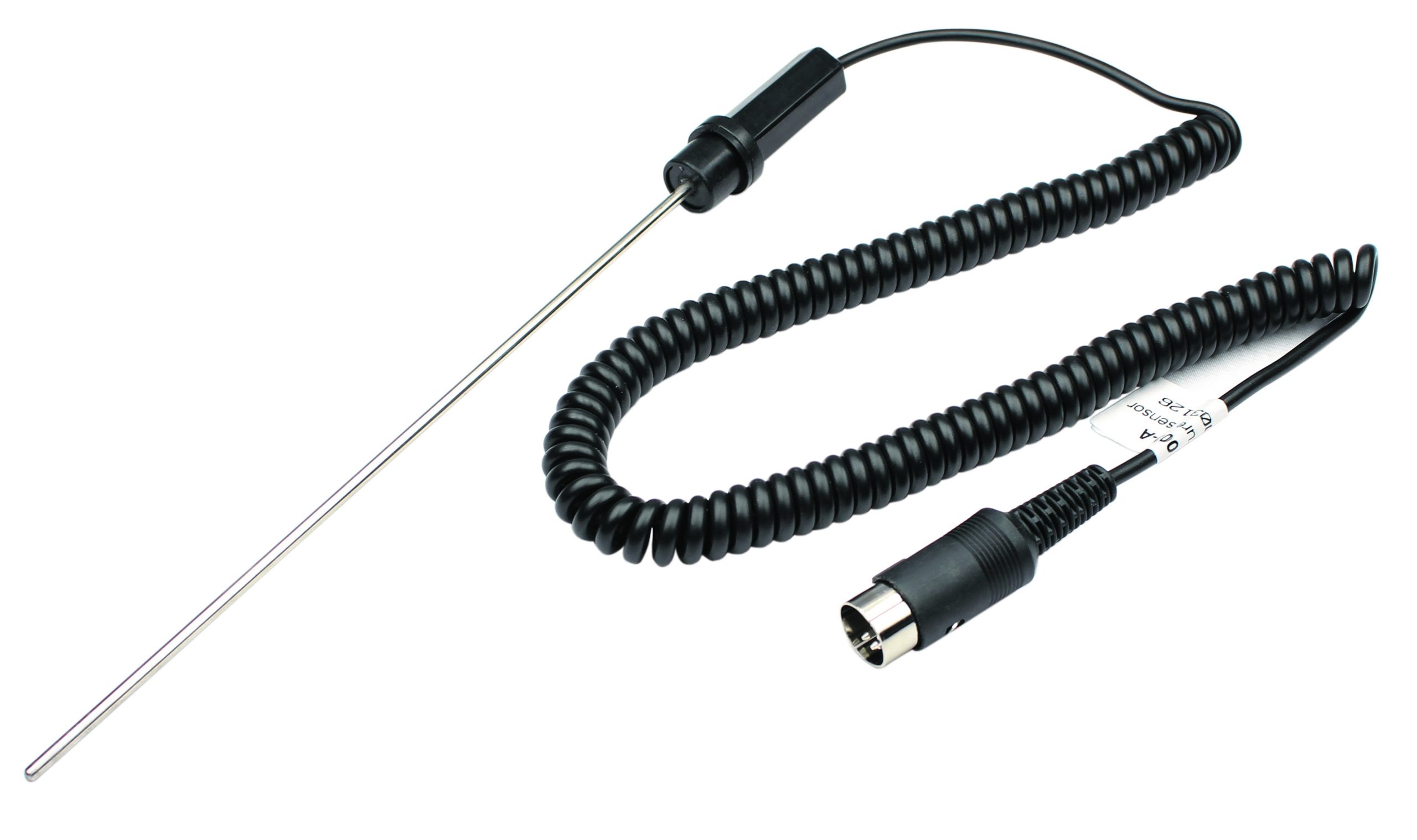

- PT1000 external temperature sensor for precise temperature control at ±0.2°C.
- Timer setting ranges from 1min to 99h59min.
Specification:
| Workplate dimension | φ135mm (5 inch) |
| Workplate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring volume [H2O] | 20L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 100-1500rpm
resolution±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-340°C,
increment 1°C |
| Temperature control accuracy | ±1°C (<100°C)
±1% (>100°C) |
| Overheating protection | 360℃ |
| Temperature display resolution | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| “Hot” satety indication | 50℃ |
| Timer function | 1min to 99h 59min |
| Data interface | RS232 |
| Protection class | IP42 |
| Dimension [W*D*H] | 160*280*85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40C, 80%RH |
