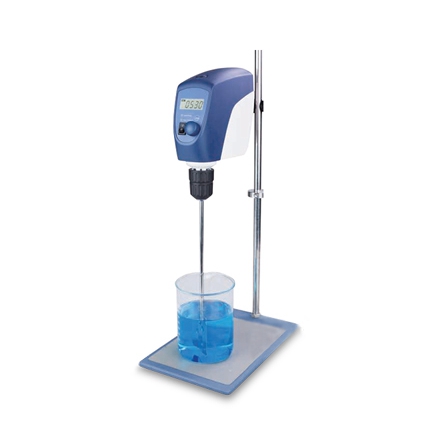

LCD Digital Overhead Stirrer
PS20-Pro, PS40-Pro
Max. stirring volume [H2O]:20L, 40L
Speed range ( r/min ):50-2200
Display:LCD
Max. torque ( N-cm ): 40, 60
Max. viscosity ( mPa·s ):10000, 50000
Data interface:RS232
Description
Features:
- Easy and user friendly operation with LCD digital display of set and actual speeds.
- Speed adjustable within 50-2200rpm with precise speed control.
- High performance BLDC motor with overload protection.
- Speed maintains as the viscosity changes.
- RS232 interface to control and data document.
- Microprocessor controlled safety circuits prevent splashing.
- Powerful torque suitable for stirring of highly viscous liquids.
Specification:
| Specifications | PS20-Pro | PS40-Pro |
| Max. stirring volume [H2O] | 20L | 40L |
| Motor type | brushless DC motor | |
| Motor rating input | 60W | 120W |
| Motor rating output | 50W | 100W |
| Voltage | 100-240V, 50/60 Hz | |
| Power | 70W | 130W |
| Speed range | 50-2200rpm | |
| Speed control accuracy | ±3rpm | |
| Speed display | LCD | |
| Torque display | LCD | |
| Overload protection display | LED indicator | |
| Max. torque | 40N-cm | 60N-cm |
| Max. viscosity | 10000mPa·s | 50000mPa·s |
| Chuck clamping range | 0.5-10mm | |
| Dimension [W*H*D] | 83*220*186mm | |
| Weight | 2.8kg | |
| Protection class | IP21 | |
| Permissible ambient
temperature and humidit |
5-40℃, 80%RH | |
| Data interface | RS232 | |
