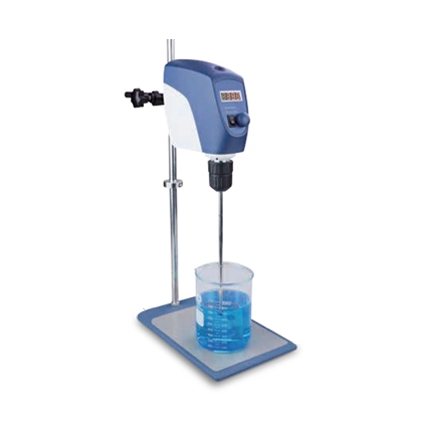

LED Digital Overhead Stirrer
PS20-S, PS40-S
Max. stirring volume [H2O]:20L, 40L
Speed range ( r/min ):50-2200
Display:LED
Max. torque ( N-cm ): 40, 60
Max. viscosity ( mPa·s ):10000, 50000
Data interface:No
Description
Features:
- Easy and user friendly operation with LED digital display of actual speeds.
- Speed adjustable within50-2200rpm with precise speed control.
- High performance BLDC motor with overload protection.
- Speed maintains as the viscosity changes.
- Protection class of IP42.
- Microprocessor controlled safety circuits prevent splashing.
- A wide range of shaft accessories for different kinds of applications.
Specification:
| Specifications | PS20-S | PS40-S |
| Max. stirring volume [H2O] | 20L | 40L |
| Motor type | brushless DC motor | |
| Motor rating input | 60W | 120W |
| Motor rating output | 50W | 100W |
| Voltage | 100-240V, 50/60 Hz | |
| Power | 70W | 130W |
| Speed range | 50-2200rpm | |
| Speed control accuracy | ±3rpm | |
| Speed display | LED | |
| Overload protection display | LED indicator | |
| Max. torque | 40N-cm | 60N-cm |
| Max. viscosity | 10000mPa·s | 50000mPa·s |
| Chuck clamping range | 0.5-10mm | |
| Dimension [W*H*D] | 83*220*186mm | |
| Weight | 2.8kg | |
| Protection class | IP21 | |
| Permissible ambient
temperature and humidit |
5-40℃, 80%RH | |
