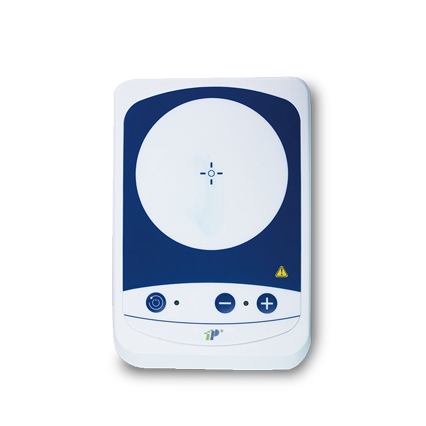

Ultra-flat Compact Magnetic Stirrer
Model:P-FlatSpin
Work plate size:φ90mm
Work plate material:PET
Max. stirring volume:0.8L
Speed range:15-1500rpm
Display:No
Data interface:No
Support clamp & temperature sensor: Optional
Description
Introduction:
It is a motor less magnetic stirrer available in portable shape and size with high speed range up to 1500rpm. P-FlatSpin with PET top workplate is suitable for small volume stirring applications. The device is easy to use and requires minimal maintenance, making it a popular choice for laboratory professionals.
Features:
- Light in weight, portable and easy to operate.
- Electronic speed regulation: from 0-1100rpm.
- High resistance to chemicals.
- Maintenance-free ultra-flat magnetic stirrer.
- Auto reverse rotation ensures enhanced mixing.
Specification:
| Workplate dimension | φ90mm |
| Workplate material | PET |
| Motor type | Motorless |
| Motor rating output | 3W |
| Power | 5W |
| Voltage | 100-120/200-240V, 50/60Hz |
| Stirring positions | 1 |
| Max. stirring volume [H2O] | 0.8L |
| Max. magnetic bar [length] | 40mm |
| Speed range | 15-1500rpm |
| Speed setting | Touch key |
| Protection class | IP65 |
| Dimension [W*D*H] | 175*120*15mm |
| Weight | 0.3kg |
| Permissible ambient temperature and humidity | 5-40C, 80%RH |
