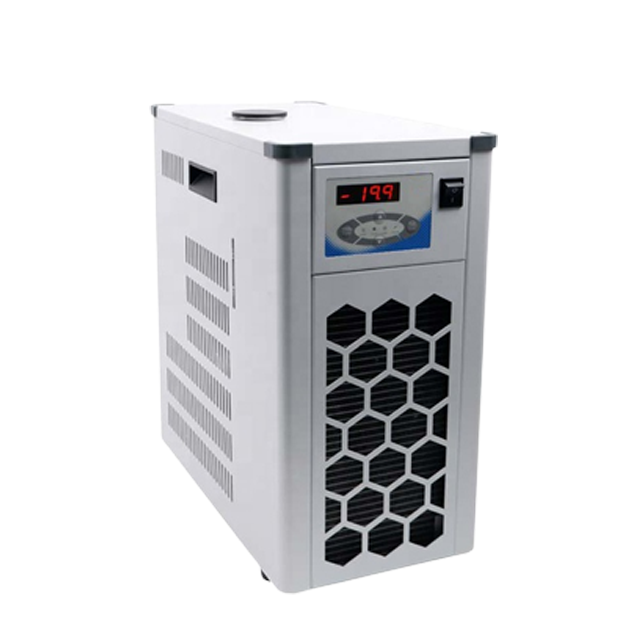

Mini Low Temperature Circulator
Mini Low Temperature Circulator is a laboratory instrument used for controlling the temperature of a liquid sample within a range of -20℃ to Ambient Temp.. The circulator consists of a refrigeration system, a heating system, and a pump that circulates the liquid through the system. The mini size of the circulator makes it ideal for use in small laboratory spaces or for experiments that require a smaller volume of liquid.
Model:PCP5-Mini
Temperature Range:-20℃~ Ambient Temp.
Temperature Stability:±0.3℃
Pump Flow Max.:22L/Min
Tank Size:4.5L
Communication interface:Optional RS232/485
Low-level Alarm:Optional
Heating Function:Optional
Description
Features:
- Intuitive liquid level window for easy monitoring of liquid level in storage tank.
- Water tank is set to protect the overflow port and drain port, which is convenient for filling-in and draining-out liquid.
- Maintenance-free pressure/suction pump.
- Pump pressure and flow can be automatically adjusted according to load change.
- Adopt PID temperature control technology which greatly improves temperature stability.
Specification:
| Temperature Range | -20℃~ Ambient Temp. |
| Temperature Display | LED Display, Accuracy 0.1℃ |
| Temperature Stability | ±0.3℃ |
| Refrigerating capacity | 700W |
| Pump pressure | 0.3bar |
| Pump suction | 0.2bar |
| Pump Flow Max. | 22L/Min |
| Tank Size | 4.5L |
| Cooling Water Tubing | Silicone |
| Communication interface | Optional RS232/485 |
| Low-level Alarm | Optional |
| Heating Function | Optional |
| Overall dimensions (W*D*H) | 220*420*495 (mm) |
| Operating Environment | 5-32℃/80% |
| Outer Connected Dimension | Standard 8mm insulation tube |
| Power supply | 220V/50Hz |
