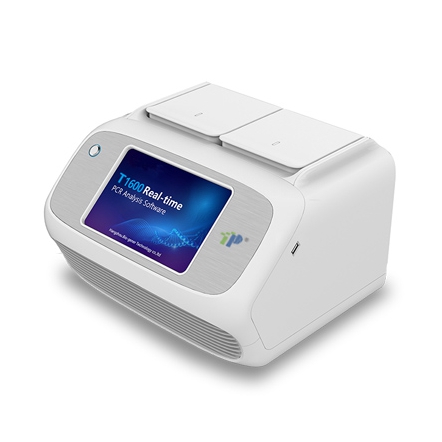

32-Well 4 Channels Thermal Cycler Real-Time PCR System

The Real-Time PCR System adopts four channel and double 16-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.

Features:

• Four channels and double 16-well blocks design, can run two different programs at the same time.
• Small size, light weight, easy to carry.
• Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, Relative quantification, and etc.
• 7-inch high-definition TFT color touch screen, and embedded win10 operating system.
• 20G flash memory can save 40,000 experimental data.
• Printer as an optional which can print the records directly, no need to connect the computer.
• Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage.
• Black reaction block to avoid background noise.
• LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
• The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
• Front shutdown button makes file data more secure.
• Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
• It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
• Forward and backward air vent design, can be placed side by side, saving laboratory space.
