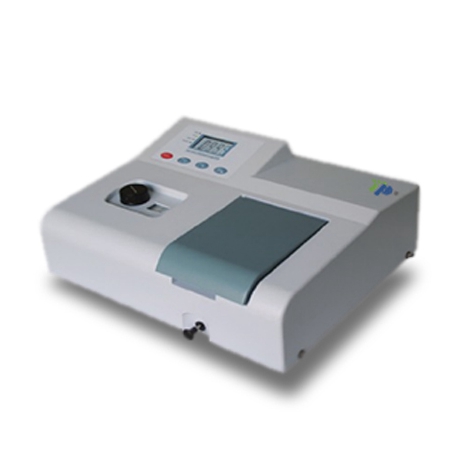

Single Beam UV-Vis Spectrophotometer
Model:PUV1100
Optical system:Single Beam, Grating1200lines/mm
Wavelength range:195-1020 nm
Wavelength accuracy:±2nm
Spectral bandwidth:5nm
Wavelength repeatability:≤1nm
Scattered light:0.3%T
Data output:RS232
PC software available: No
Description
PUV1100 Single Beam UV-Vis Spectrophotometer can measure in the wavelength range 190 to 1020 nm. Low price and simple design make the model ideal tool foreducation or routine analysis.
Features:
- Simple single beam spectrophotometer.
- The wavelength is set manually from the dial on thefront panel.
- Direct readout of transmission or absorption on the LED display.
- Measured values can betransferred to PC via RS232 port for further analysis.
Specification:
| Model | PUV1100 | |
| Optical System | Single Beam, Grating1200lines/mm | |
| Wavelength Range | 195-1020 nm | |
| Spectral Bandwidth | 5 nm | |
| Wavelength Accuracy | ±2nm | |
| Wavelength Repeatability | 1nm | |
| Photometric Accuracy | ±0.5%T | |
| Photometric Repeatability | 0.2%T | |
| Photometric Range | 0-200%T | |
| Stray light | 0.3%T | |
| Stability | 0.002A | |
| Baseline Flatness | ±0.002A | |
| Noise | ±0.001A | |
| Wavelength Setting | Manual | |
| Work Mode | T, A, C | |
| Light Source | Deuterium & Tungsten lamp | |
| Display | 4 LCD | |
| Detector | Silicon Photodiode | |
| Output | RS-232 port | |
| Power | AC 220V/50Hz or AC 110V/60Hz | |
| Shipping Size | 520*450*320mm | |
| Gross Weight | 12kg | |
