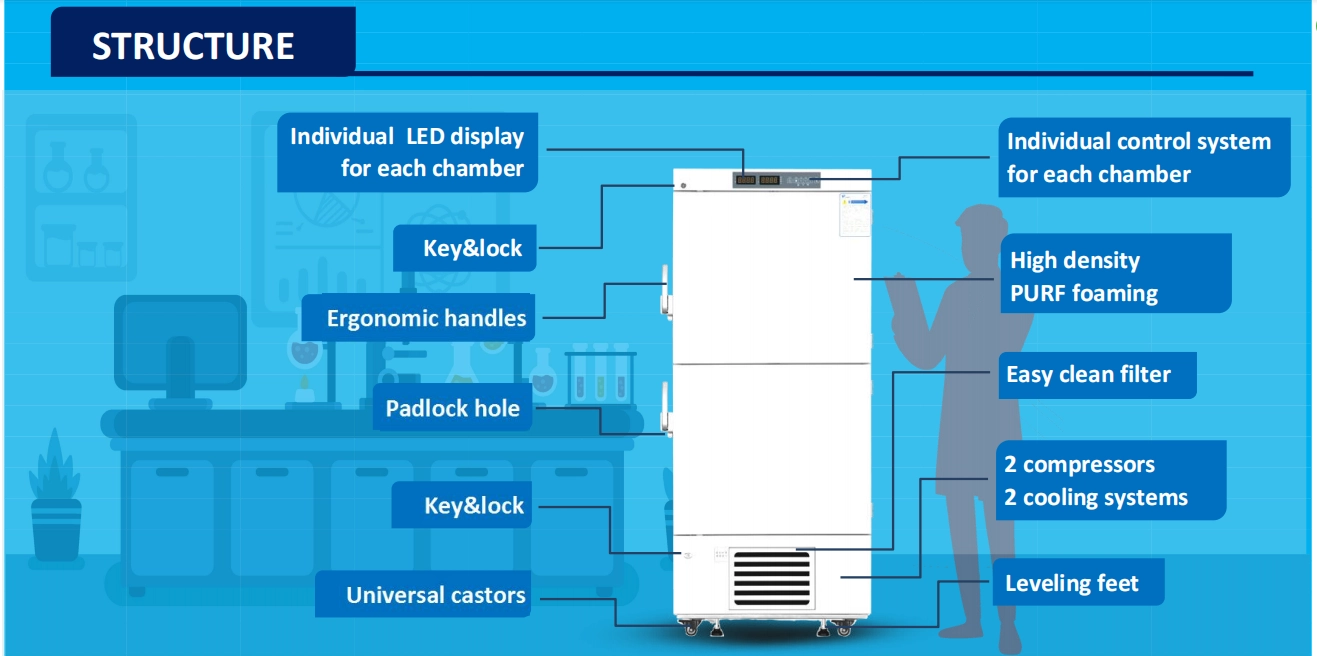

Features of Biomedical Freezer:
- Compressors: Double cooling system, double chamber

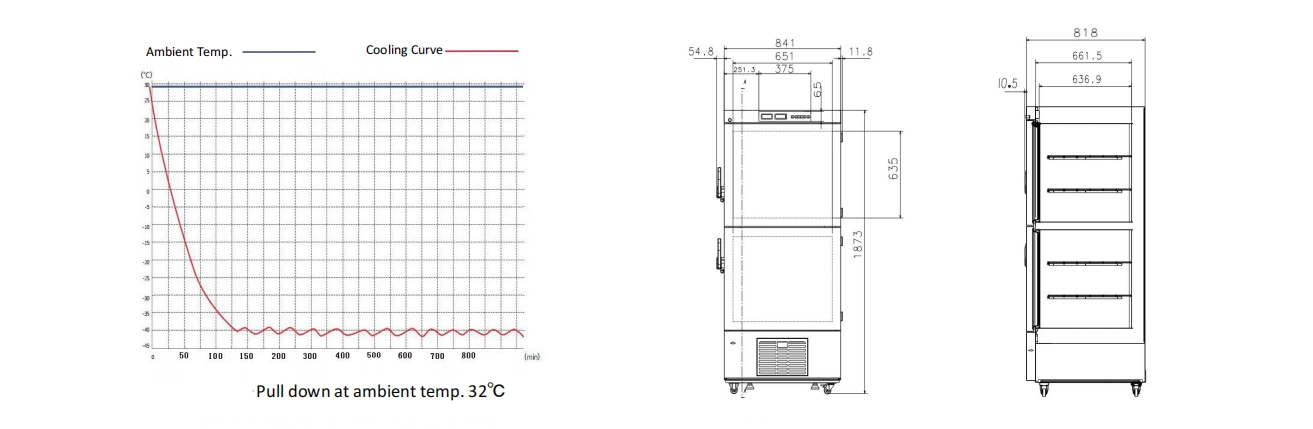

- Fast pull down: 150 minutes from +25℃ to -40℃
- Coil evaporator: Better performance, easy maintenance
- Thick PURF insolation: Better insulation performance
- Lockable doors: Standard locks & padlocks

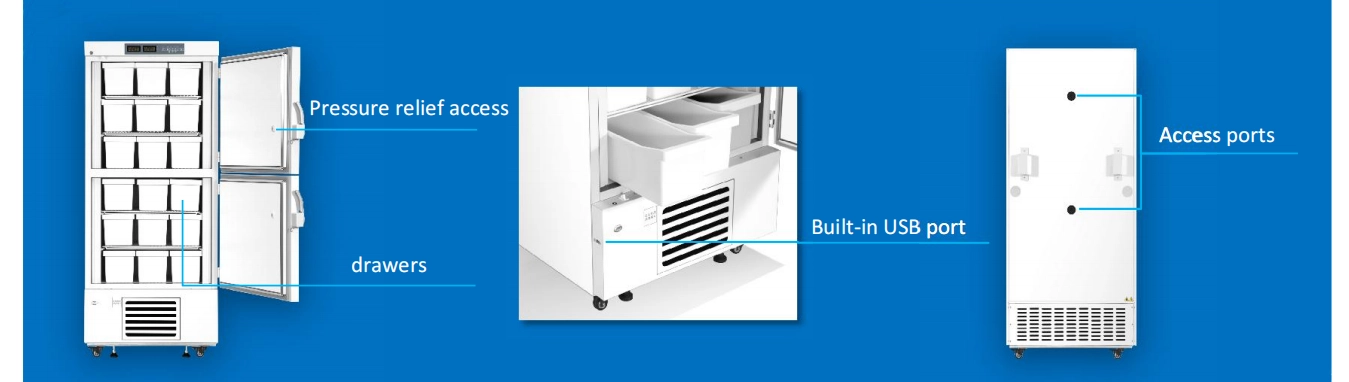

- Large LED displays: Easy to observe and operate, built-in USB
- Precise temp. control: Temp. control accurate to 0.1℃
- 6 types of alarm: Audible and visual alarms
- Variable space: Adjustable shelves and drawers
- Eco-friendly: Cfc-free refrigerant and energy-saving
Specification of Biomedical Freezer:
| Basic | |
| Cooling method | Direct Cooling |
| Defrost | Manual |
| Temperature rang | -20℃ ~ -40℃ |
| Ambient temperature | 10 ~ 32℃ |
| Display | Digital display |
| Refrigeration System | |
| Refrigerant | R290 |
| Temp. controller | Microprocessor |
| Sensor | NTC |
| Compressor brand / QTY | CUBIGEL / 2 |
| Condenser | Copper tube |
| Capacity ( L / cu ft ) | 528 / 18.64 |
| Alarms | |
| High / low temperature | Y |
| Power failure | Y |
| Sensor error | Y |
| Door ajar | Y |
| Controller failure | Y |
| Electrical Data | |
| Voltage frequency ( V / Hz ) | 220V 50HZ |
| Power ( W ) | 340W |
| Current ( A ) | 3.4A |
| Dimensions | |
| Exterior size ( W*D*H ) ( mm ) | 910*845*1875 |
| Interior size ( W*D*H ) ( mm ) | ( 651*631.5*635 ) * 2 |
| Other | |
| Remote alarm port | Y |
| Access port QTY / Dia. | 2 / 25 MM |
