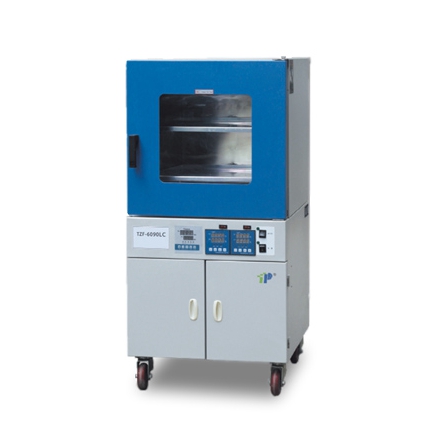

Floor-standing Vacuum Drying Oven

Vacuum drying ovens are used for gentle drying under vacuum without modifying the product characteristics. It designed for drying heat-sensitive, easily decomposed and easily oxidized substances, and can be filled with inert gas inside, especially some items with complex components can also be dried quickly. It is widely used in pharmaceutical, electronic and chemical industries.

Model:TZF Series

Type:Floor-standing

Volume (L):53L, 90L, 125L, 215L, 430L, 834L

Temperature (°C):+10℃~250℃, +10℃~200℃

Material:Inner stainless steel plate or brushed plate

Display:LCD display

  • Product Details

Features:

  • Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.
  • The cuboid studio maximizes the effective volume.
  • Toughened, bulletproof double-layer glass door to observe the objects in the working room, which is clear at a glance.
  • The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box.
  • The studio is made of stainless steel plate or brushed plate to ensure that the product is durable.
  • The “D” series is an intelligent ten-segment programmable LCD controller.
  • Equipped with “LC” series to display and control the vacuum degree.

Specification:

Model TZF-6050LC TZF-6090 TZF-6123A TZF-6210 TZF-6500 TZF-6930
TZF-6053LC TZF-6090D TZF-6123LC TZF-6210D TZF-6500D
TZF-6126A TZF-6210LC TZF-6500LC TZF-6930LC
TZF-6055LC TZF-6090LC TZF-6126LC TZF-6216A TZF-6506A TZF-6936
TZF-6216LC TZF-6506LC TZF-6936LC
Voltage 220V 50HZ 380V 50Hz
Input power 1800W 1400W 2000W 2200W 3600W 5600W
Temperature control range +10℃~250℃ +10℃~200℃
Temperature resolution 0.1℃
Constant temperature fluctuation ±1℃
Reach vacuum <133Pa
Working temperature 5℃~40℃
Inner tank size(mm) 415*370*345 450*450*450 500*500*500 560*600*640 630*810*845 750*1060*1050
Dimensions (mm) 600*570*1200 615*620*1300 665*670*1400 720*805*1600 790*1030*1760 1400*1390*2005
Shelf 2; 3; 5 2; 2; 2 3; 3; 3; 6; 6 3; 3; 3; 6; 6 3; 3; 3; 6; 6 5; 5; 6; 6
Heating method Surround Shelf Shelf/Surround Shelf/Surround Shelf/Surround Shelf/Surround
Studio material Stainless steel (1Gr18Ni9Ti)
Timing range 1~9999 minutes
